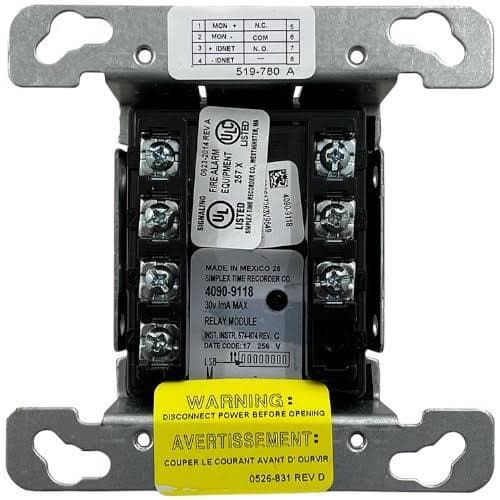

Simplex 4090-9118 (Relay IAM with T-Sense)

Simplex·SKU: 4090-9118

Indicative Price

Excluding local taxes and shipping.

Relay IDNET 2 IAM with T-Sense

infoNo online payment — request a quote and our team sends pricing. Prices are indicative and exclude taxes & shipping.

Description

The Simplex 4090-9118 combines a Form C relay output with a supervised T-Sense input using one IDNet address. Its input distinguishes normal, open, short and current-limited states, allowing position feedback from two contacts. IDNet supplies both power and communications. Typical applications include damper control with position feedback, subject to host-panel programming and compatibility.

Manufacturer product information

Technical Specifications

CommunicationsIDNet; one address
InputSupervised T-Sense dry-contact input
Maximum input wiring distance500 ft (152 m); indoor
Relay outputForm C / SPDT
Resistive contact rating2 A at 30 VDC; 0.5 A at 120 VAC

Documents & Technical Downloads

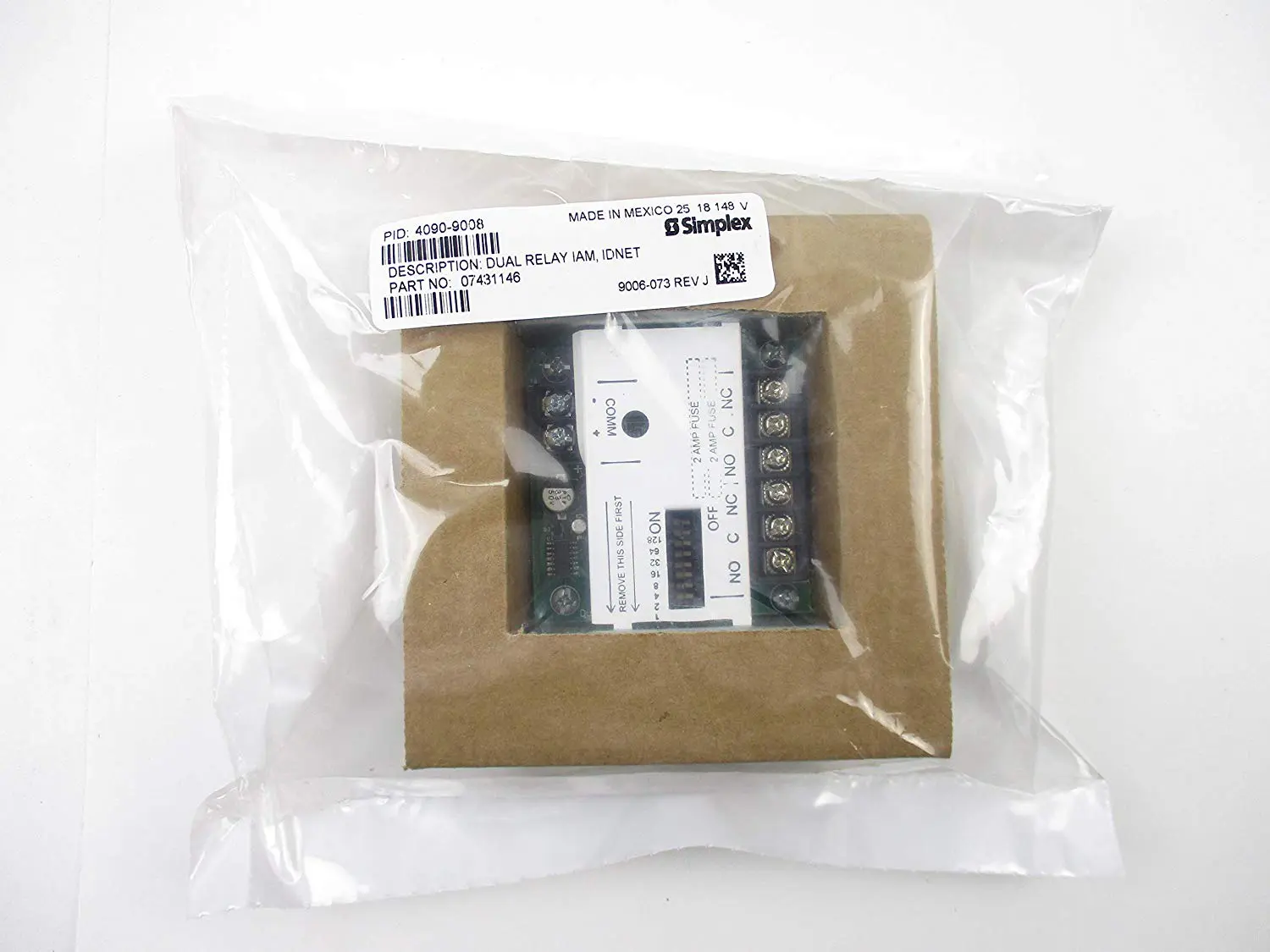

Simplex 4090-9008 (Dual Relay IAM)

Simplex 4090-9008 (Dual Relay IAM)

Indicative Price

from

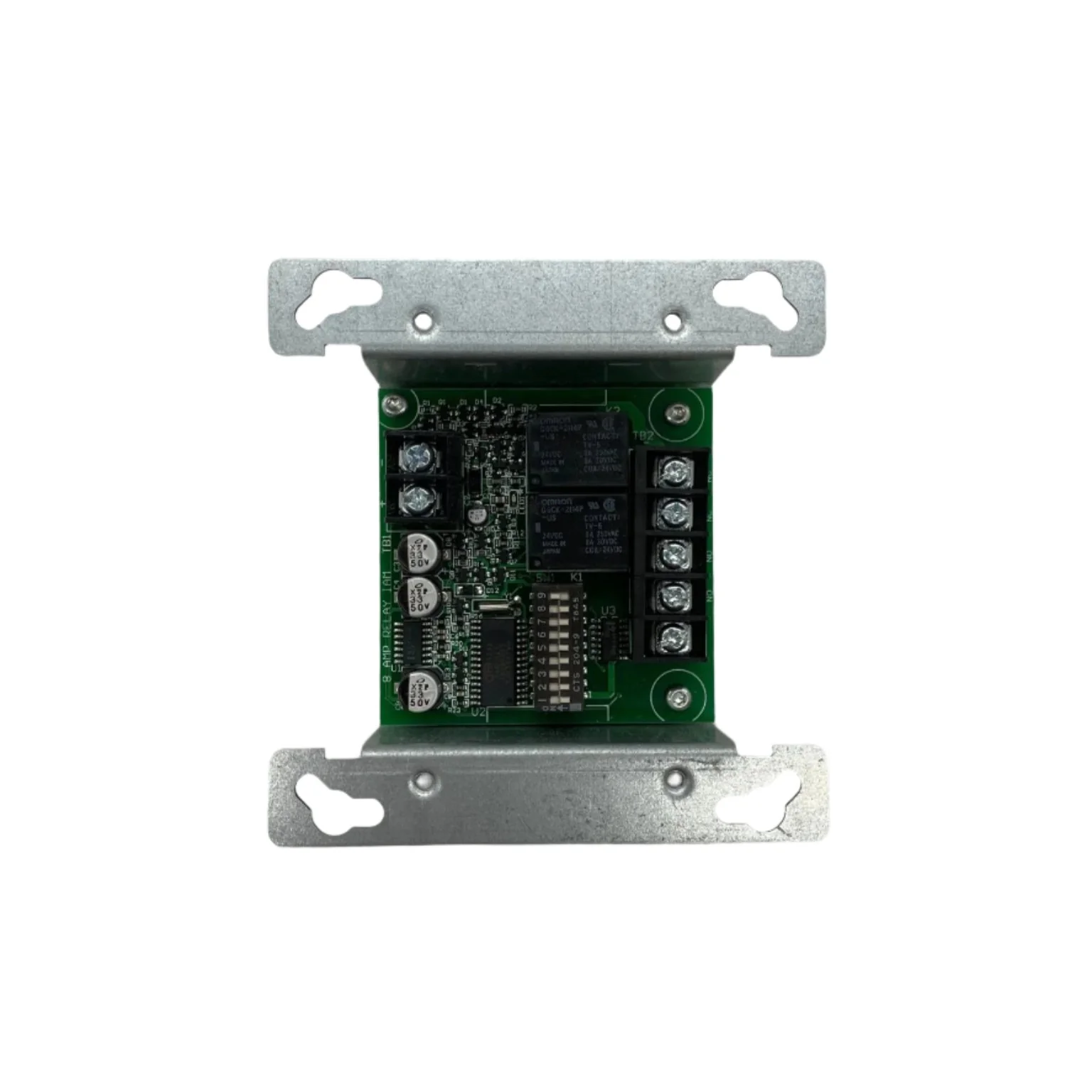

Simplex 4090-9010 (8 Amp Relay IAM Module)

Simplex 4090-9010 (8 Amp Relay IAM Module)

Indicative Price

from

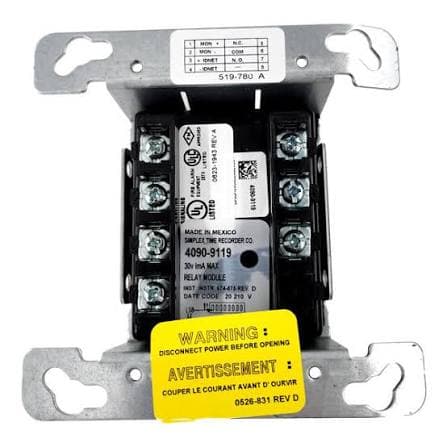

Simplex 4090-9119 (Relay IDNET 2 IAM)
