Relay Modules

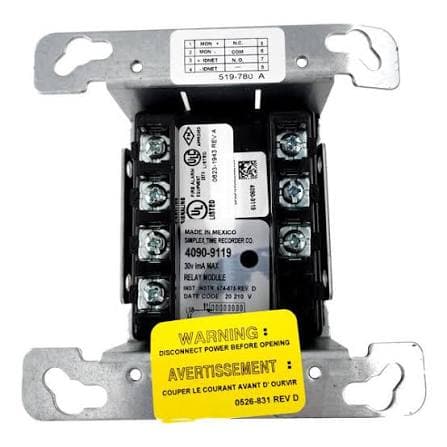

Simplex 4090-9119 (Relay IDNET 2 IAM)

Simplex·SKU: 4090-9119

Indicative Price

Excluding local taxes and shipping.

Relay IDNET 2 IAM with Feedback

infoNo online payment — request a quote and our team sends pricing. Prices are indicative and exclude taxes & shipping.

Description

The Simplex 4090-9119 combines an unsupervised dry-contact input and a Form C relay output in one IDNet-addressed module. IDNet provides power and communications, while panel programming associates the control and feedback functions. This version is suited to an unsupervised status input; it does not provide the T-Sense supervision of the separate 4090-9118.

Manufacturer product information

Technical Specifications

CommunicationsIDNet; one address
InputUnsupervised normally open dry contact
Operating temperature0 to 49 °C; indoor
Relay outputForm C / SPDT
Resistive contact rating2 A at 30 VDC; 0.5 A at 120 VAC
