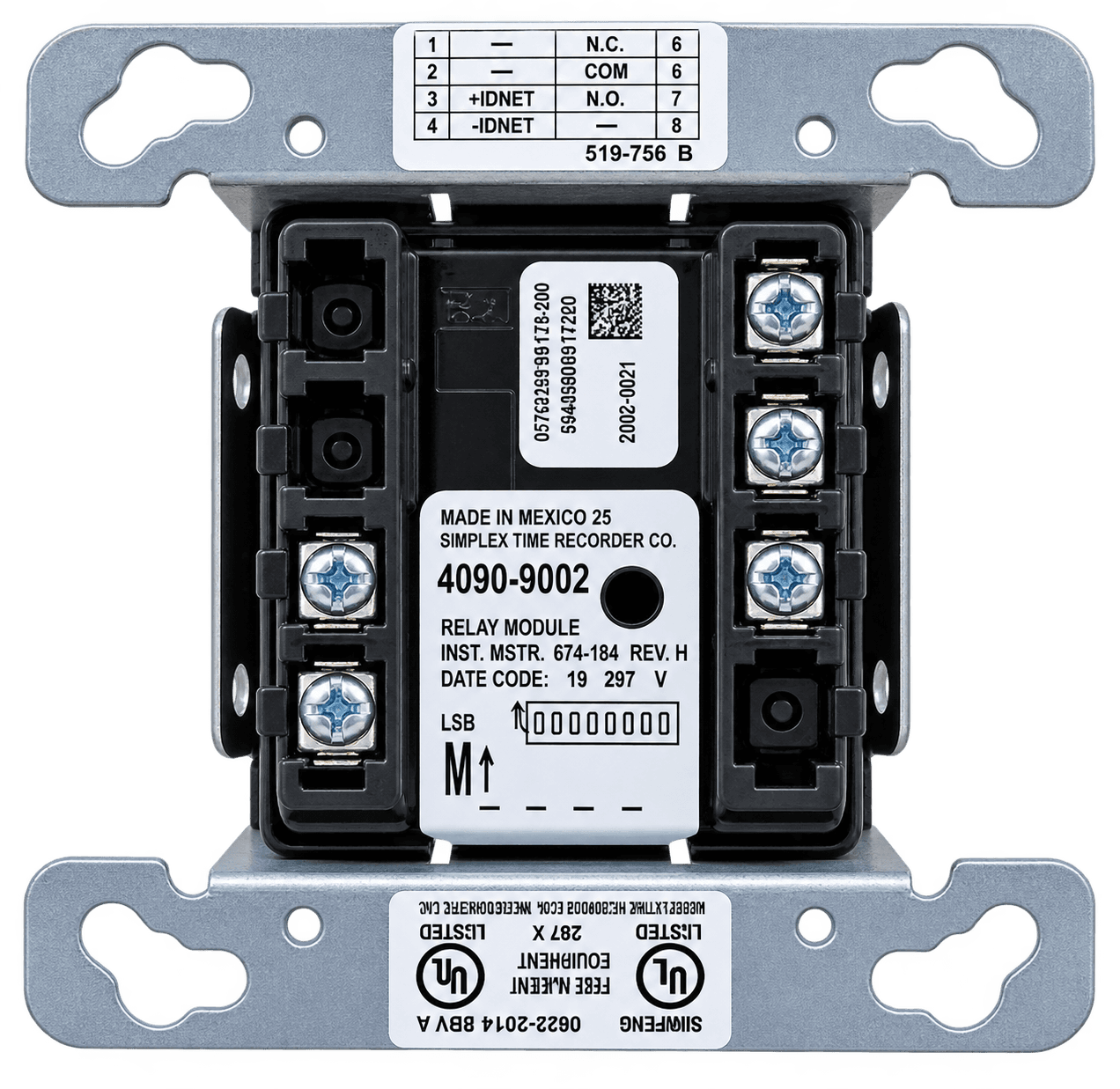

Simplex 4090-9002 (IAM Relay IDNET) 1.png
Relay Modules

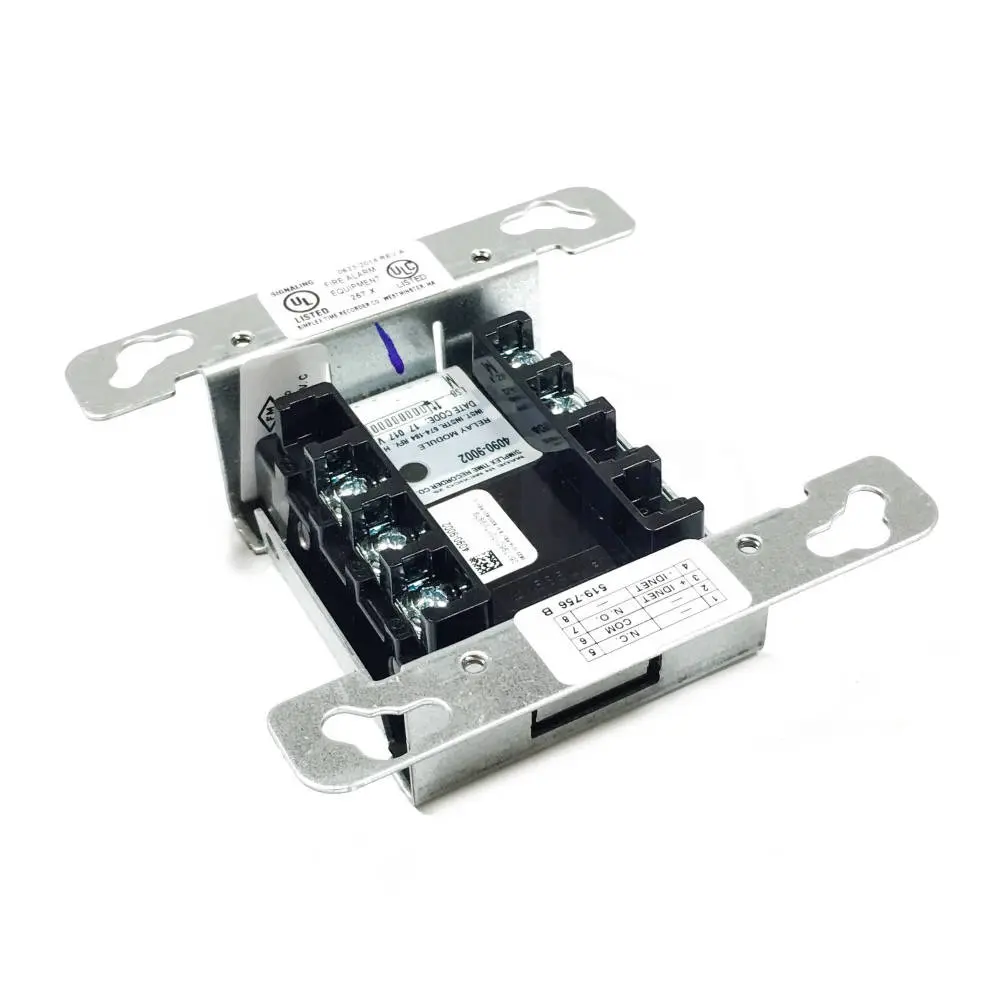

Simplex 4090-9002 (IAM Relay IDNET)

Simplex·SKU: 4090-9002

Indicative Price

Excluding local taxes and shipping.

IAM Relay IDNET

infoNo online payment — request a quote and our team sends pricing. Prices are indicative and exclude taxes & shipping.

Description

The Simplex 4090-9002 Relay IAM gives a compatible IDNet panel control and status tracking of one Form C contact. A low-power latching relay allows the communications circuit to provide both data and module power. The sealed thermoplastic assembly mounts in a suitable electrical box and has a visible communications LED. Contact loading depends on the load type specified in the datasheet.

Manufacturer product information

Technical Specifications

CommunicationsIDNet; one address
Dimensions (H × W × D)105 × 105 × 35 mm
Operating temperature0 to 49 °C; indoor
Power supplyIDNet communications powered
Relay outputOne Form C contact

Documents & Technical Downloads

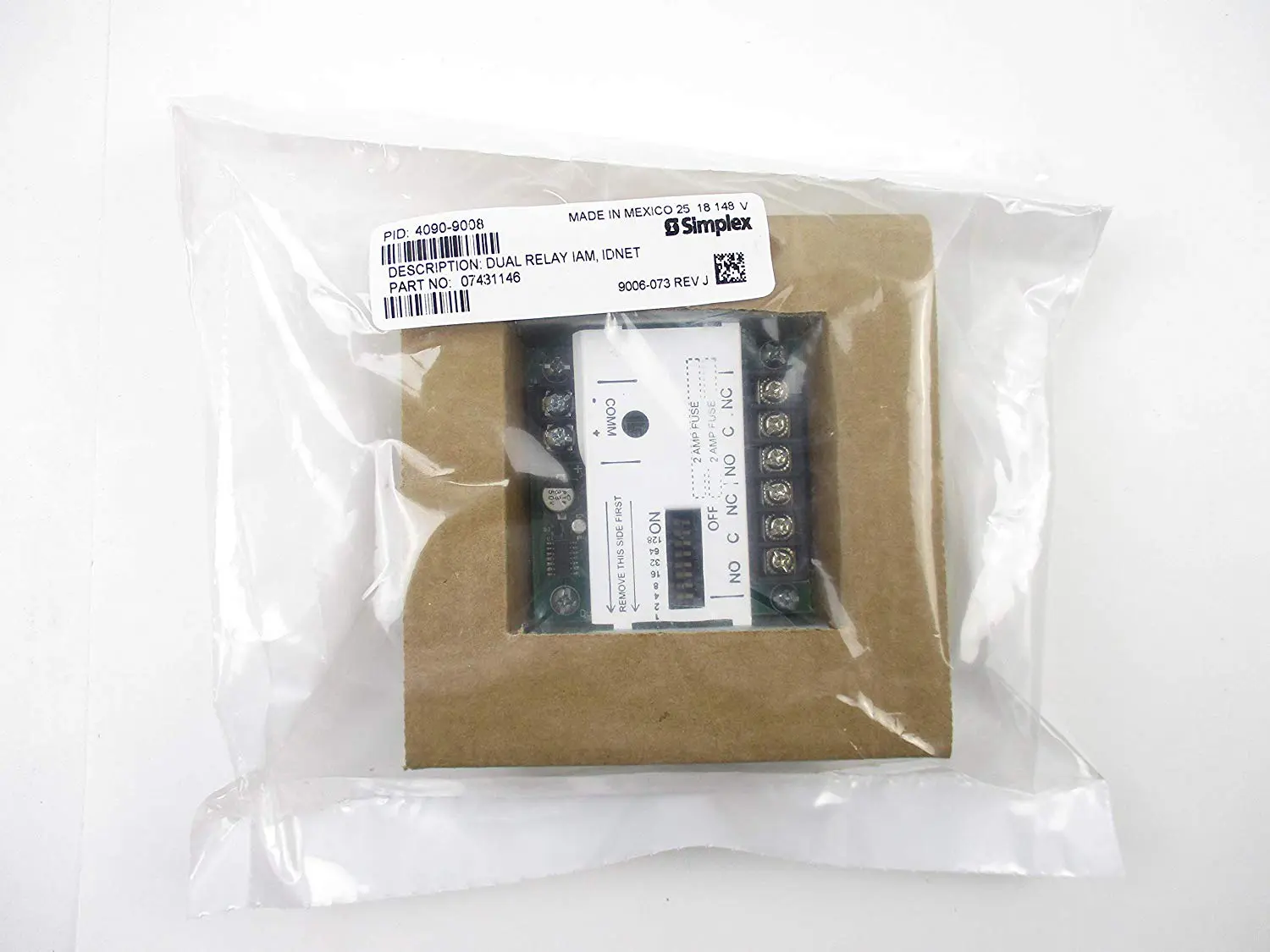

Simplex 4090-9008 (Dual Relay IAM)

Simplex 4090-9008 (Dual Relay IAM)

Indicative Price

from

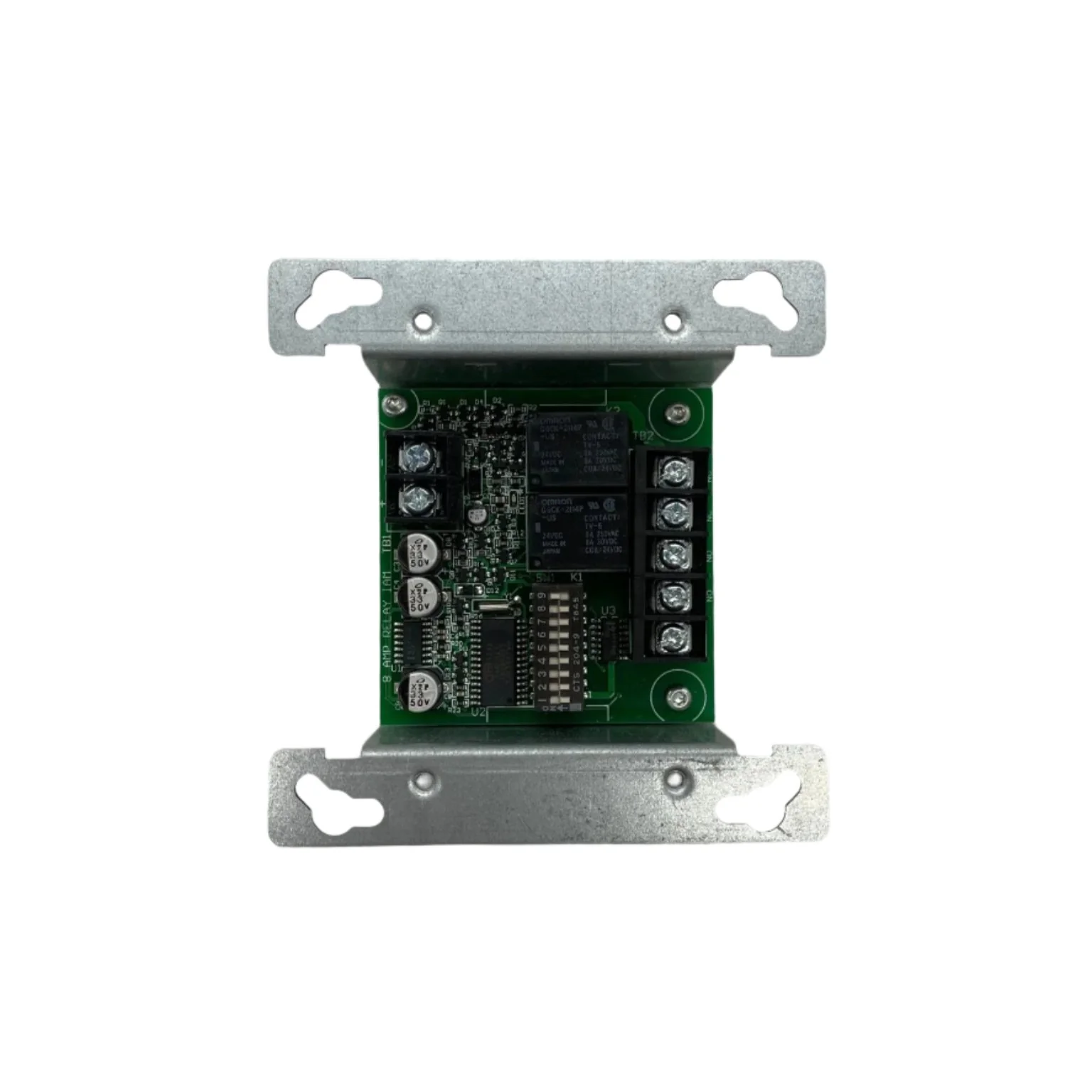

Simplex 4090-9010 (8 Amp Relay IAM Module)
