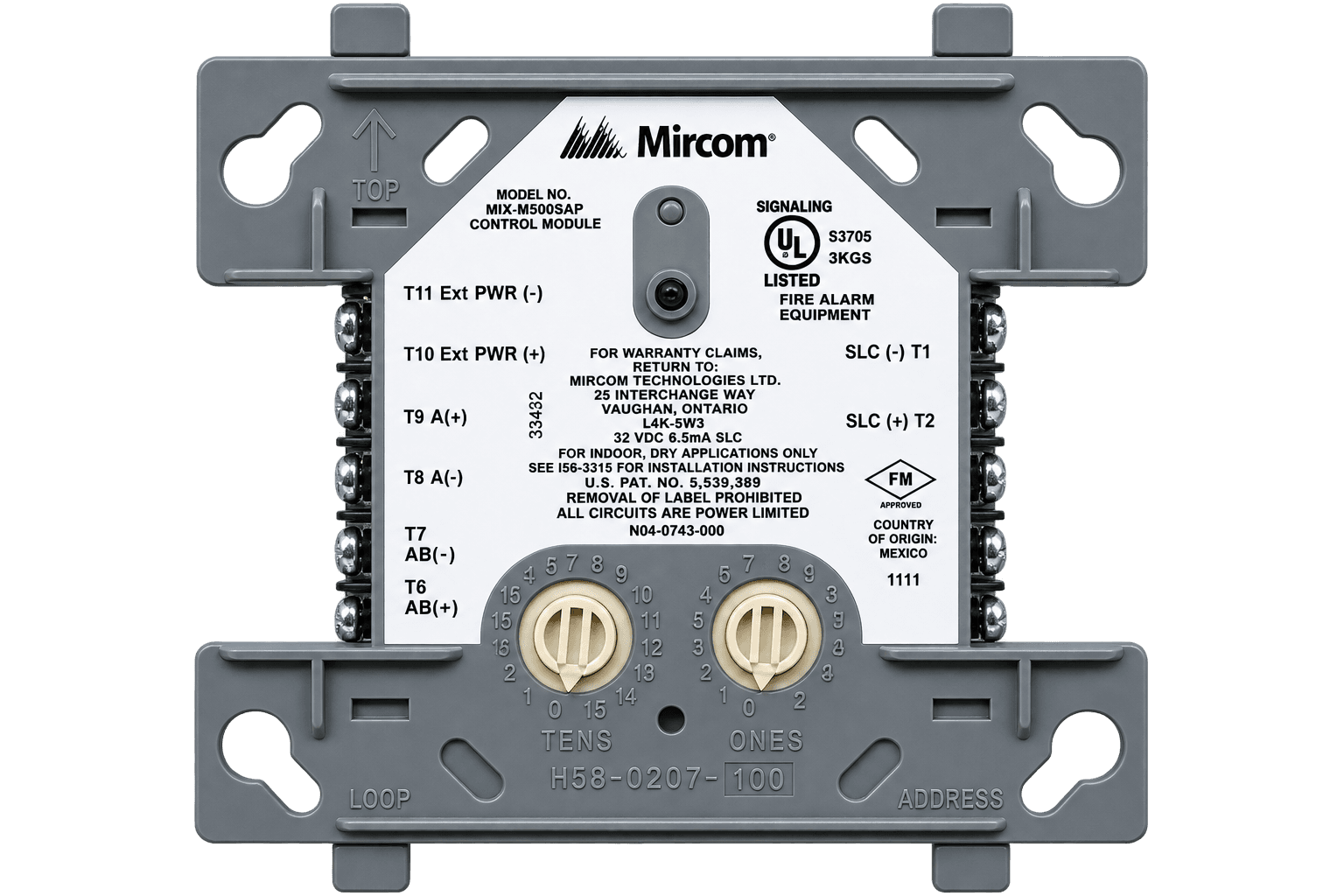

Mircom MIX-M500SAP (Supervised Output Module)

Mircom·SKU: MIX-M500SAP

Indicative Price

Excluding local taxes and shipping.

Mircom MIX-M500SAP Advanced Protocol Intelligent Supervised Output Module

infoNo online payment — request a quote and our team sends pricing. Prices are indicative and exclude taxes & shipping.

Description

The MIX-M500SAP supervised control module switches an external notification-appliance supply or audio source under the control of a compatible Mircom intelligent panel. It reports normal, open and short-circuit conditions on the connected load wiring. Rotary switches set the module address. External supply requirements and output loading depend on the selected wiring and application.

Manufacturer product information

Technical Specifications

External NAC supplyRegulated 24 VDC
Maximum NAC current3 A Class B; 2 A Class A
Operating temperature0 to 49 °C
Operating voltage15 to 32 VDC
Output supervisionNormal, open circuit and short circuit
