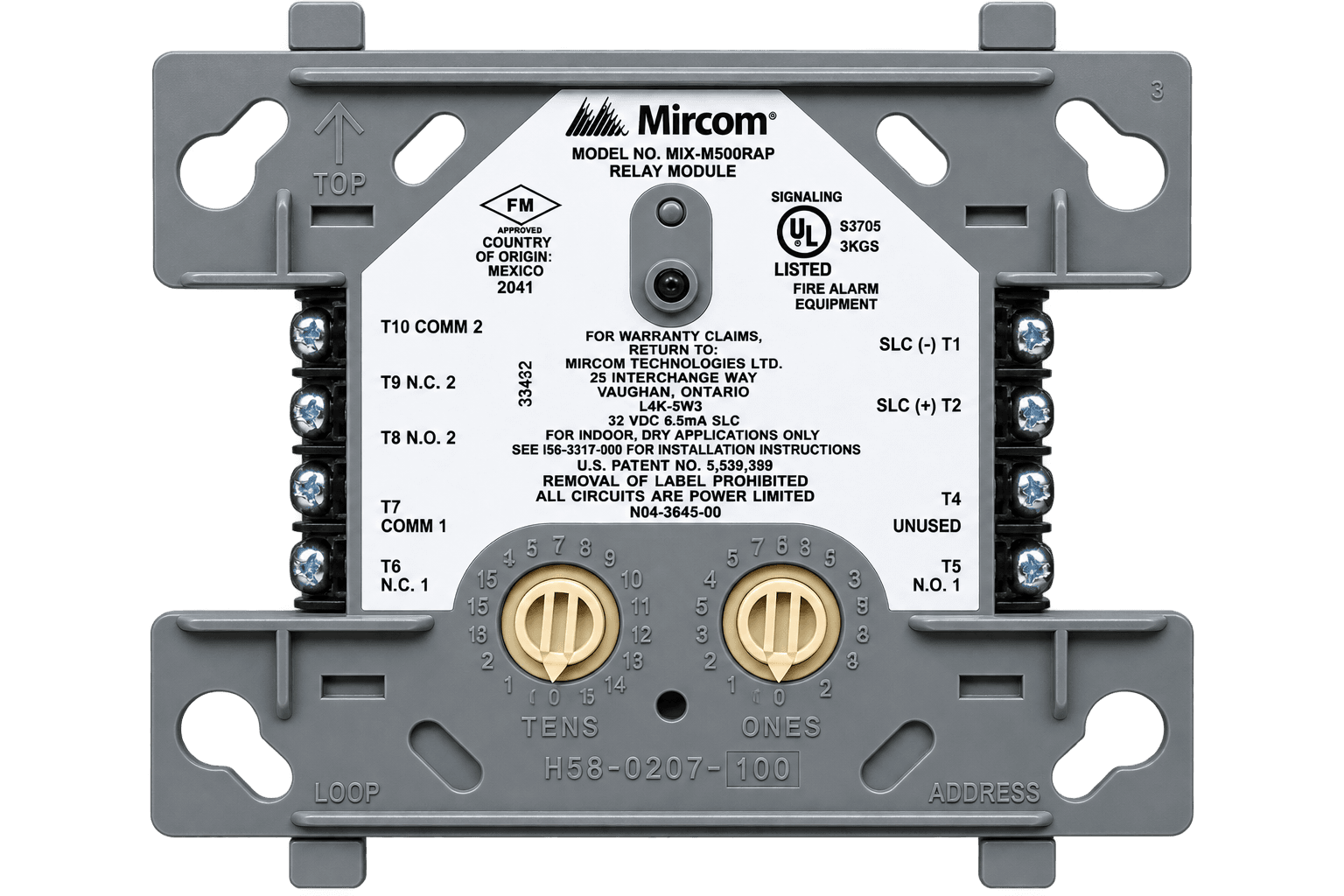

Mircom MIX-M500RAP (Relay Control Module)

Mircom·SKU: MIX-M500RAP

Indicative Price

Excluding local taxes and shipping.

Mircom MIX-M500RAP Relay Control Module

infoNo online payment — request a quote and our team sends pricing. Prices are indicative and exclude taxes & shipping.

Description

The MIX-M500RAP relay control module lets a compatible Mircom intelligent panel switch two isolated Form C contact sets as a DPDT relay. Rotary decade switches set its address and a panel-controlled LED indicates status. Connections to the relay contacts are not supervised by the module; contact loading must follow the application-specific rating table.

Manufacturer product information

Technical Specifications

Average operating current300 µA; one communication every 5 seconds
Maximum alarm current6.5 mA with LED on
Operating temperature0 to 49 °C
Operating voltage15 to 32 VDC
Relay configurationTwo isolated Form C contact sets; DPDT
