Mircom MIX-4040-M 1.png
Relay Modules

Mircom MIX-4040-M

Mircom·SKU: MIX-4040-M

Indicative Price

Excluding local taxes and shipping.

4000 SERIES MULTI INPUT MODULE

infoNo online payment — request a quote and our team sends pricing. Prices are indicative and exclude taxes & shipping.

Description

The MIX-4040-M Multi Input Module is an intelligent addressable device that can be used for alarm, monitor or supervisory type applications. It is designed to be used with an MGC compatible Fire Alarm Control Unit.

Features
  • Supports either 6 class A or 12 class B inputs.
  • No EOL resistor required when input is in Class A operation.
  • Monitor 12 independent input circuits with only one address when configured as class B.
  • Fast, reliable contact monitoring.
  • Affordable and space efficient.
  • Quick and easy installation.
  • Each input has LED indicators to signal Alarm (RED) or Trouble (yellow).
  • Additional LEDs to show SLC communication status and if a short circuit has occurred.
  • Compatible with FX-400, FX-401 and Flex-Net FX-4000 Fire alarm control panels.
  • Up to 2 modules can be mounted on UL/ULC listed backbox enclosure, BB-4002R.
  • Up to 6 modules can be mounted on UL/UL listed backbox enclosure, BB-4006R.
  • Mounting bracket kit allows to mount it on any other UL/ULC listed equivalent backbox enclosure

Ordering Information

  • MIX-4040-M: 4000 Series Multi Input Module (6 class A / 12 class B)
  • BB-4002R: Box for 2 MIX-4000 Multi modules, red door
  • BB-4006R: Box for 6 MIX-4000 Multi modules, red door
  • MGC-4000-BR: Mounting Bracket Kit for Multi Modules
  • MIX-4090: 4000 Series Address programmer
  • MP-302: EOL 22k resistor on mounting plate

Agency Listings

*Please contact local Mircom Sales Representative for regional availability.

Manufacturer technical information

Technical Specifications

Compatible panelsFX-400, FX-401 and FleX-Net FX-4000
Input circuits6 Class A or 12 Class B

Documents & Technical Downloads

Simplex 4090-9008 (Dual Relay IAM)

Simplex 4090-9008 (Dual Relay IAM)

Indicative Price

from

Simplex 4090-9010 (8 Amp Relay IAM Module)

Simplex 4090-9010 (8 Amp Relay IAM Module)

Indicative Price

from

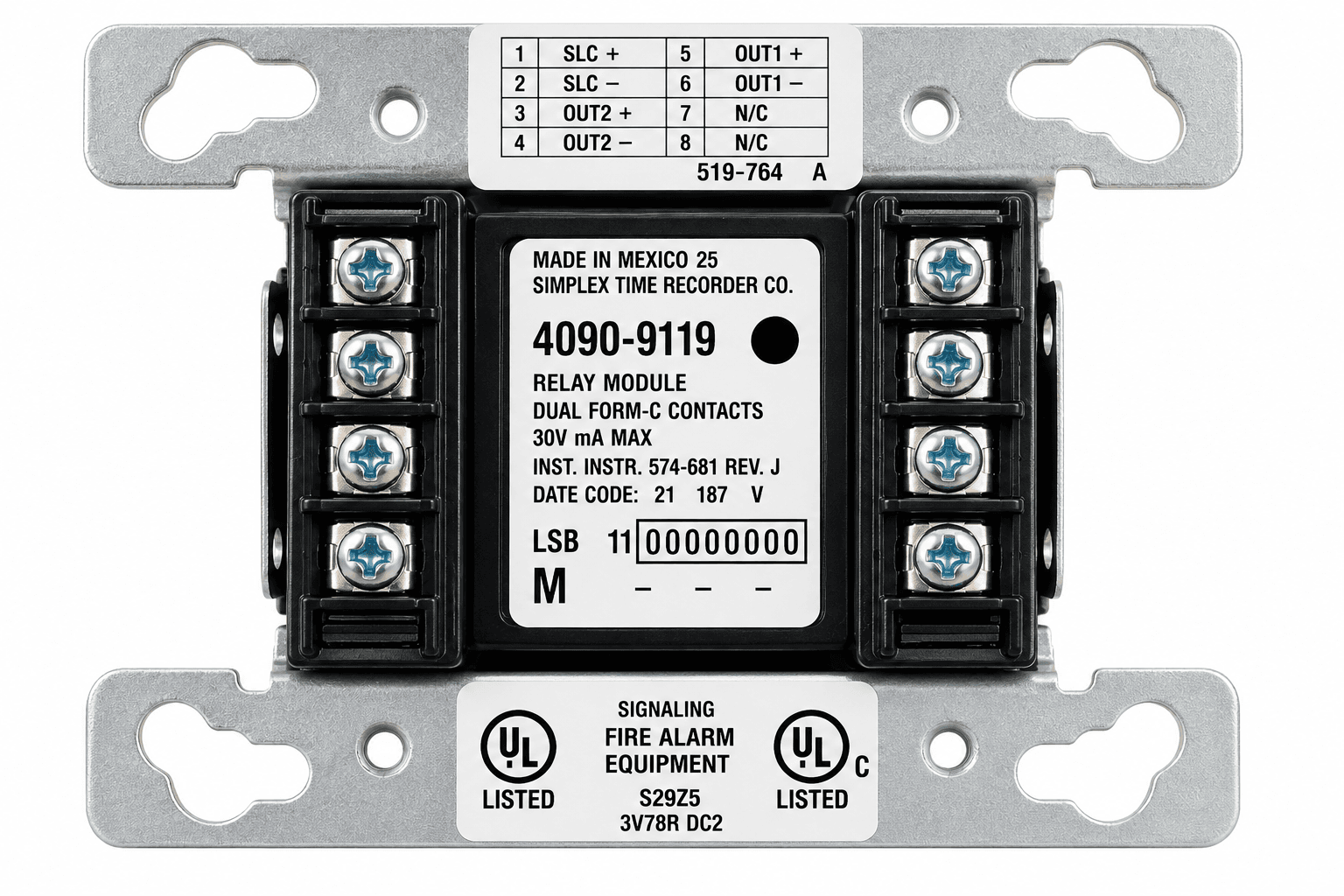

Simplex 4090-9119 (Relay IDNET 2 IAM)
