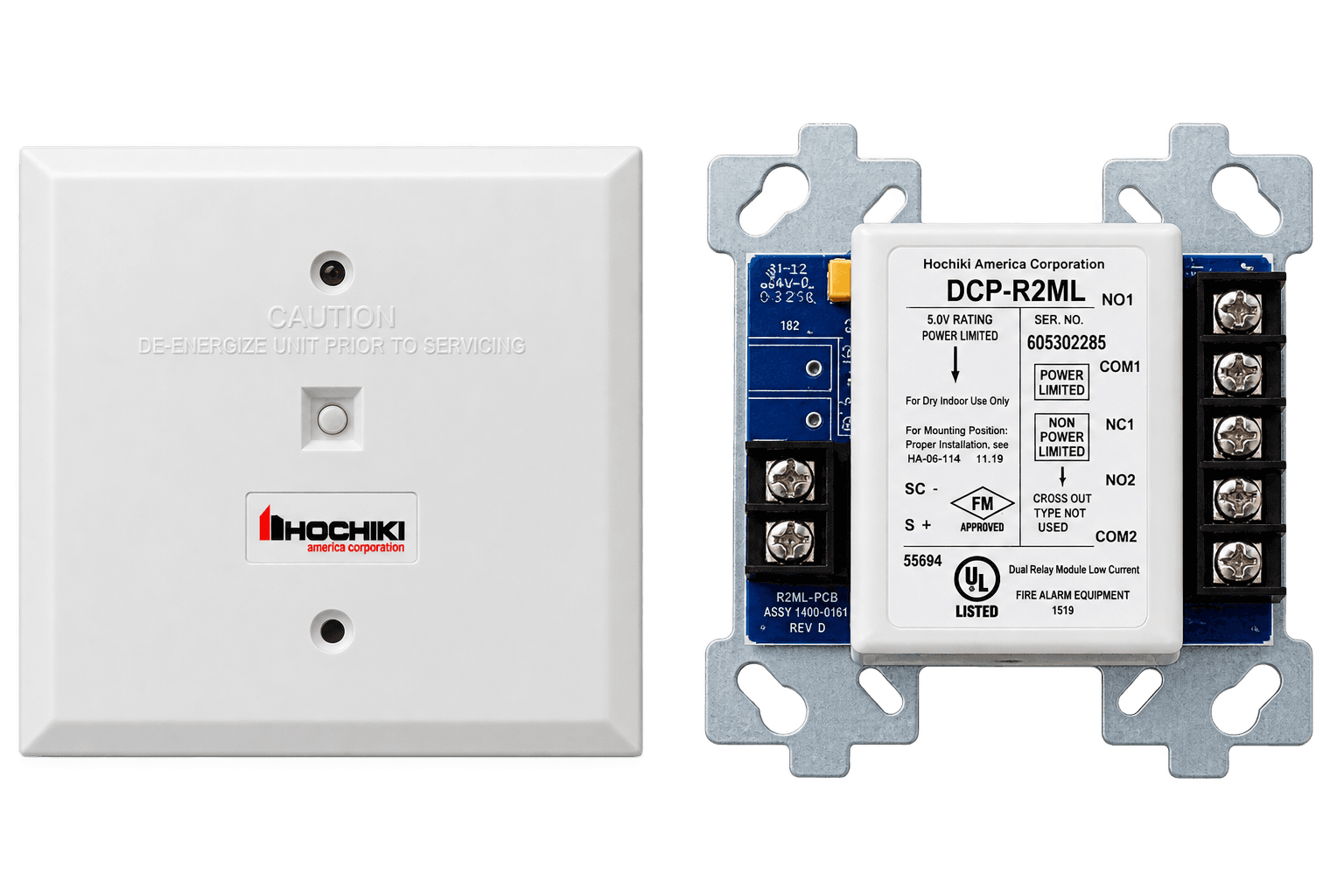

Hochiki DCP-R2ML Dual Relay Module 2 AMPS

Hochiki·SKU: DCP-R2ML

Indicative Price

Excluding local taxes and shipping.

Dual Relay Module 2 AMPS

infoNo online payment — request a quote and our team sends pricing. Prices are indicative and exclude taxes & shipping.

Description

The Hochiki DCP-R2ML controls two independently configurable Form C contacts using one DCP signalling-loop address. Its mechanically latching relays do not require a separate 24 VDC supply. The module supports coordinated group operation and provides a status LED. This is the low-current R2ML version; high-current and isolator variants have separate ratings and features.

Manufacturer product information

Technical Specifications

Contact rating2 A at 30 VDC / 0.5 A at 120 VAC
Maximum devices per loop127
Operating temperature0 to 49 °C
Operating voltage25.3 to 39 VDC
Relay outputs2 independently controlled Form C contacts
