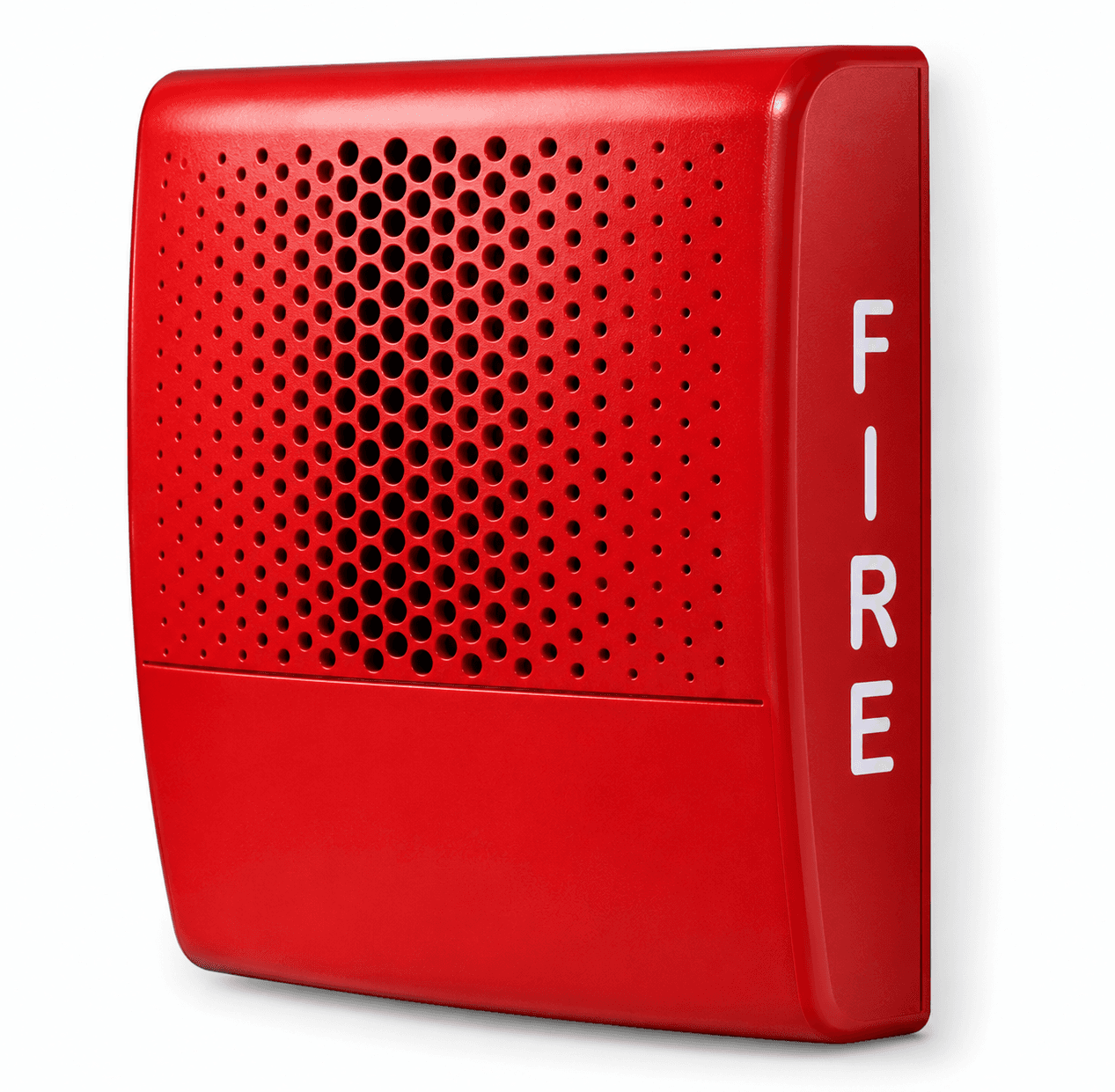

Edwards G4SRN (Speaker Red Wall Mount)

Edwards·SKU: G4SRN

Indicative Price

Excluding local taxes and shipping.

Speaker, Red, Wall Mount, No Marking

infoNo online payment — request a quote and our team sends pricing. Prices are indicative and exclude taxes & shipping.

Description

Edwards G4SRN Speaker, Red, Wall Mount, No Marking

Genesis LED G4S Series speakers and speaker-strobes combine high performance output with a sleek low profile design and energy-efficient technology that makes them less expensive to install and operate. High performance LEDs require fewer power supplies, backup power, and batteries. These new appliances are designed with energy-efficiency, and life safety in mind. Speakers feature selectable wattage taps, while speakerstrobes allow for both wattage and light output levels to be configured in the field. Both settings remain clearly visible

Key Features

  • High Fidelity performance with excellent STI
  • Increased sound fidelity and audio intelligibility with an STI rating of.81 (More than.76 is excellent)
  • Low Frequency (520Hz) capable
  • Low frequency output meets NFPA standards for newly constructed commercial sleeping areas
  • High Performance LED Strobe Technology
  • More devices per circuit
  • Ability to use lower gauge wire
  • Longer wire runs
  • Fewer booster power supplies
  • High efficiency optics

Specifications

Contact us Phone: Email edwards.fire@kgsolutions.com
Website edwardsfiresafety.com
Strobe operating voltage 16 to 33 VDC, 16 to 33 VFWR
Speaker operating voltage 25VRMS of 70VRMS (selectable)
Speaker frequency response 400Hz-4,000Hz
(UL rated) Speaker frequency response 800-655-4497 (Option 4) (nominal) 100Hz-11,000Hz
Light output 15, 30, 75, or 110 candela
Strobe flash rate 1 fps (flash per second) approx. 20 Ω max. between any two devices. To determine allowed wire resistance, refer to
Synchronization these specifications, and the specifications for the synchronized signal source. Edwards CC Series Signal Modules,
Synchronization Sources Booster and Auxiliary Power Supplies, Intelligent and Conventional Control Panels
Wire size 12 to 18 AWG (0.75 to 2.50 mm2)

Documents & Downloads

Supplier product page

Technical Specifications

Contact us Phone: Emailedwards.fire@kgsolutions.com
Light output15, 30, 75, or 110 candela
Speaker frequency response400Hz-4,000Hz
Speaker operating voltage25VRMS of 70VRMS (selectable)
Strobe flash rate1 fps (flash per second) approx. 20 Ω max. between any two devices. To determine allowed wire resistance, refer to
Strobe operating voltage16 to 33 VDC, 16 to 33 VFWR
Synchronizationthese specifications, and the specifications for the synchronized signal source. Edwards CC Series Signal Modules,
Synchronization SourcesBooster and Auxiliary Power Supplies, Intelligent and Conventional Control Panels
Websiteedwardsfiresafety.com
Wire size12 to 18 AWG (0.75 to 2.50 mm2)

Documents & Technical Downloads
