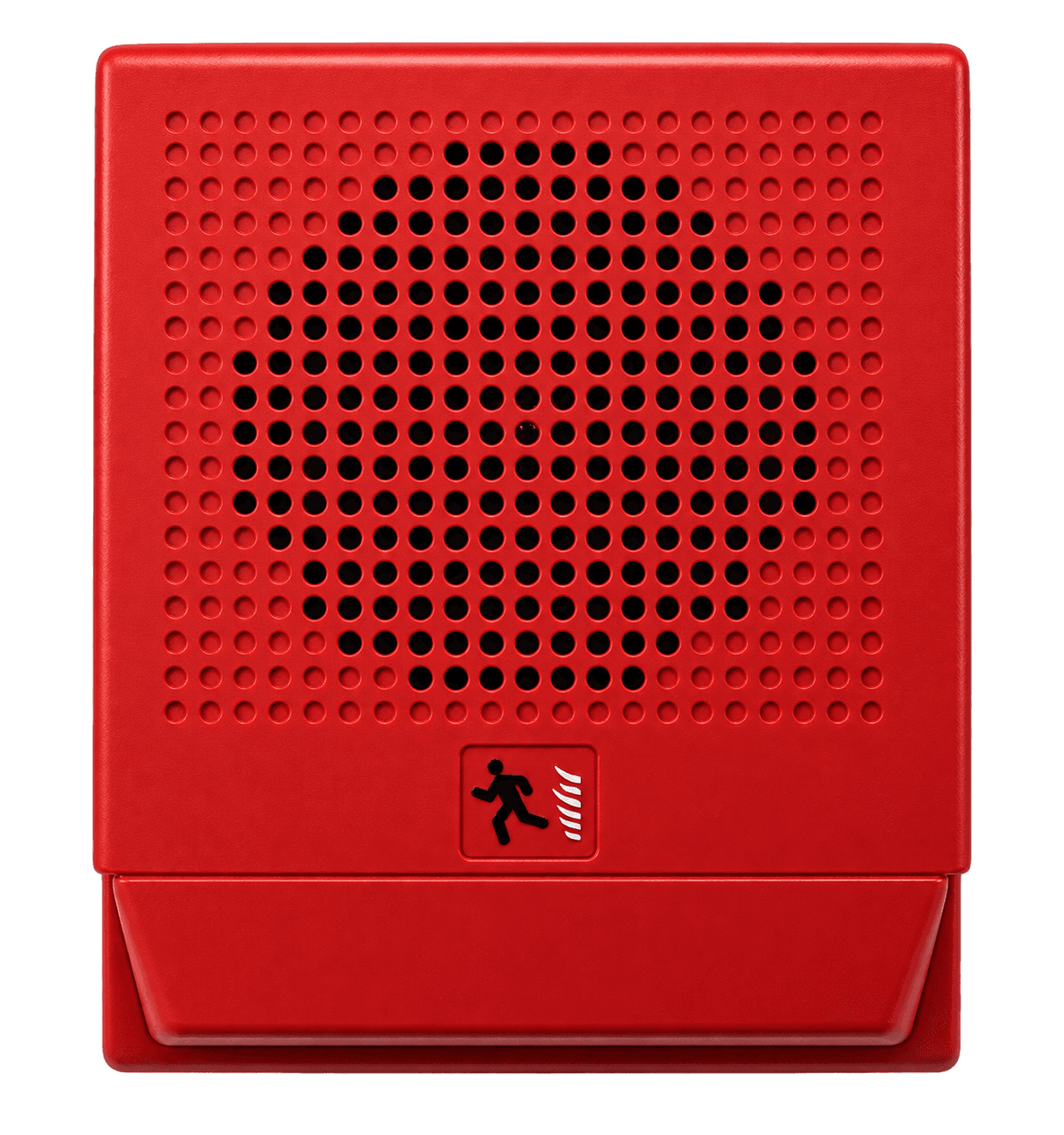

Edwards G4RF-S7 (Speaker 70V) 1.png
Horn Speakers

Edwards G4RF-S7 (Speaker 70V)

Edwards·SKU: G4RF-S7

Indicative Price

Excluding local taxes and shipping.

Speaker (70V), Multi-Tap, Red W/Fire

infoNo online payment — request a quote and our team sends pricing. Prices are indicative and exclude taxes & shipping.

Description

Edwards G4RF-S7 Speaker (70V), Multi-Tap, Red W/Fire

Genesis G4 series wall speaker (speaker only, no strobe) with a red housing and "FIRE" marking, for 70 V RMS audio circuits. It is a low-profile life safety speaker that flush mounts to a 4 in. square electrical box and has field-selectable wattage taps from 1/4 to 2 W.

Key Features

  • Selectable 1/4, 1/2, 1 or 2 watt taps; setting stays visible through a window after installation
  • Low profile: protrudes about 1 in. (25 mm) from the wall, no visible mounting screws
  • DC blocking capacitor included for audio circuit supervision
  • Fits a standard 4 in. square box, 2-1/8 in. deep; optional G4B (white) / G4RB (red) surface box
  • #18 to #12 AWG screw terminals
  • Indoor wall mounting only

Specifications

Speaker voltage 70 V RMS
Housing color Red
Marking FIRE
Dimensions 6.5 in. H x 5 in. W x 1 in. D (165 x 127 x 25 mm)
Wattage taps 1/4, 1/2, 1, 2 W (selectable)
Speaker frequency response 400 to 4,000 Hz
Operating environment 32-120 F (0-49 C), 0-93% RH, indoor
Shipping weight 1.5 lb (0.68 kg)
Sound output at 2 W 89 dBA at 10 ft (UL 1480)
Listings UL 1480, ULC-S541, CSFM, MEA

Compatible With

  • 25/70 V RMS fire alarm / emergency voice audio circuits (Edwards EST audio amplifiers)
  • G4B / G4RB surface mount boxes

Documents & Downloads

Supplier product page

Technical Specifications

Dimensions6.5 in. H x 5 in. W x 1 in. D (165 x 127 x 25 mm)
Housing colorRed
ListingsUL 1480, ULC-S541, CSFM, MEA
MarkingFIRE
Operating environment32-120 F (0-49 C), 0-93% RH, indoor
Shipping weight1.5 lb (0.68 kg)
Sound output at 2 W89 dBA at 10 ft (UL 1480)
Speaker frequency response400 to 4,000 Hz
Speaker voltage70 V RMS
Wattage taps1/4, 1/2, 1, 2 W (selectable)

Documents & Technical Downloads

Addressable wall sounder only (no flasher) with loop isolator; red body

Addressable wall sounder only (no flasher) with loop isolator; red body

Indicative Price

from

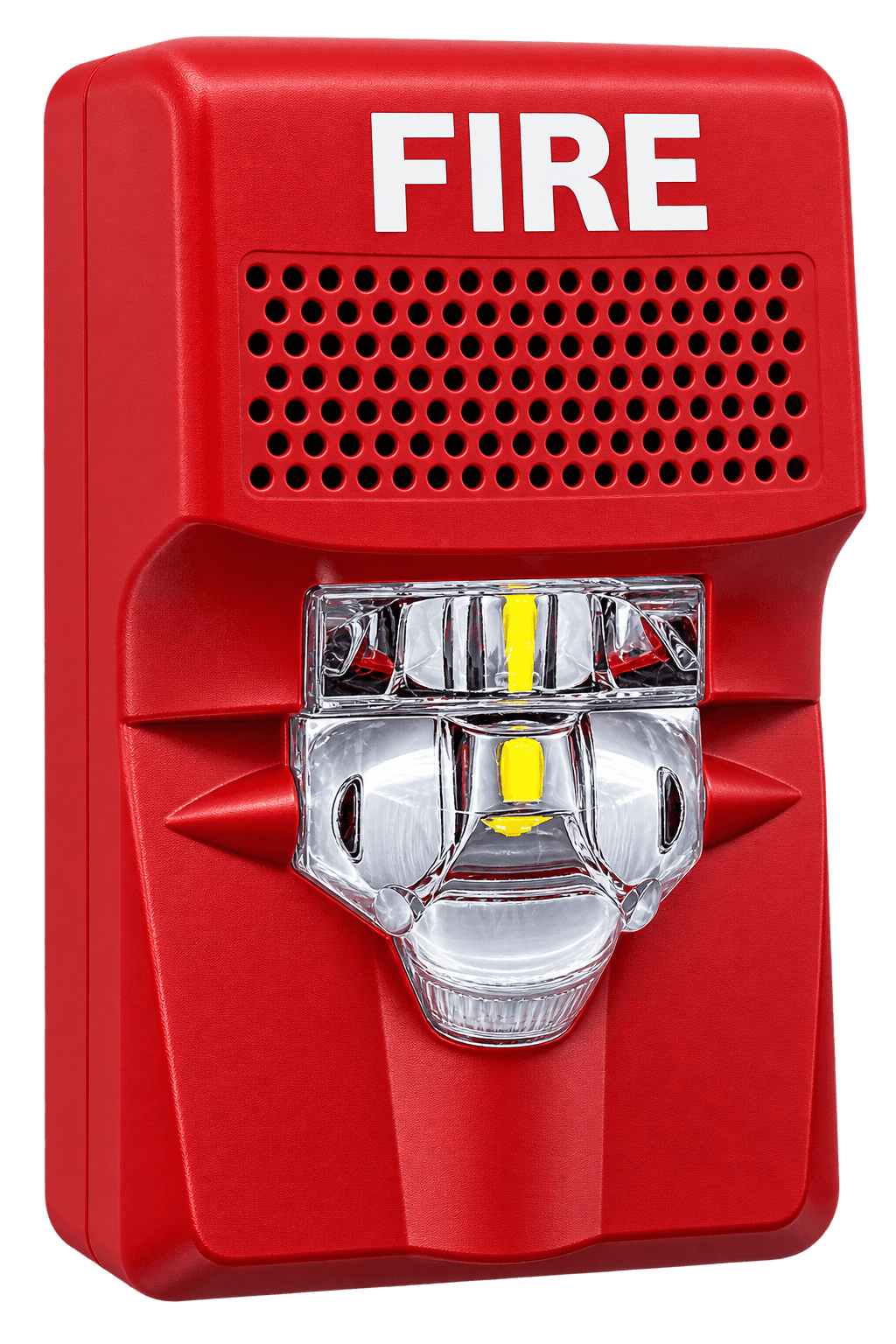

Edwards G1AVRF (Compact Wall Horn Strobe)

Edwards G1AVRF (Compact Wall Horn Strobe)

Indicative Price

from

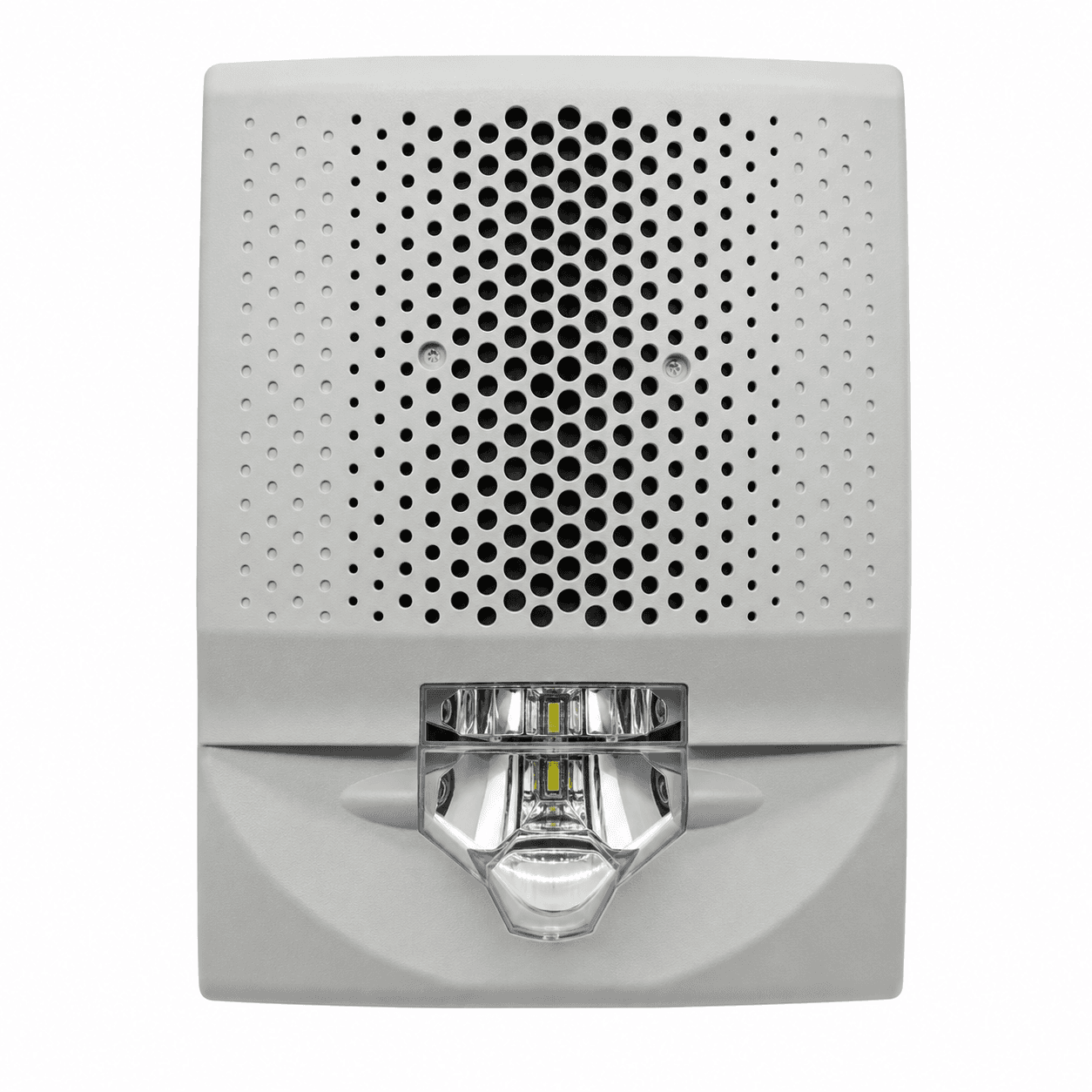

Edwards G4SVWN (Genesis LED G4S Series Speaker Strobe)

Edwards G4SVWN (Genesis LED G4S Series Speaker Strobe)

Indicative Price

from

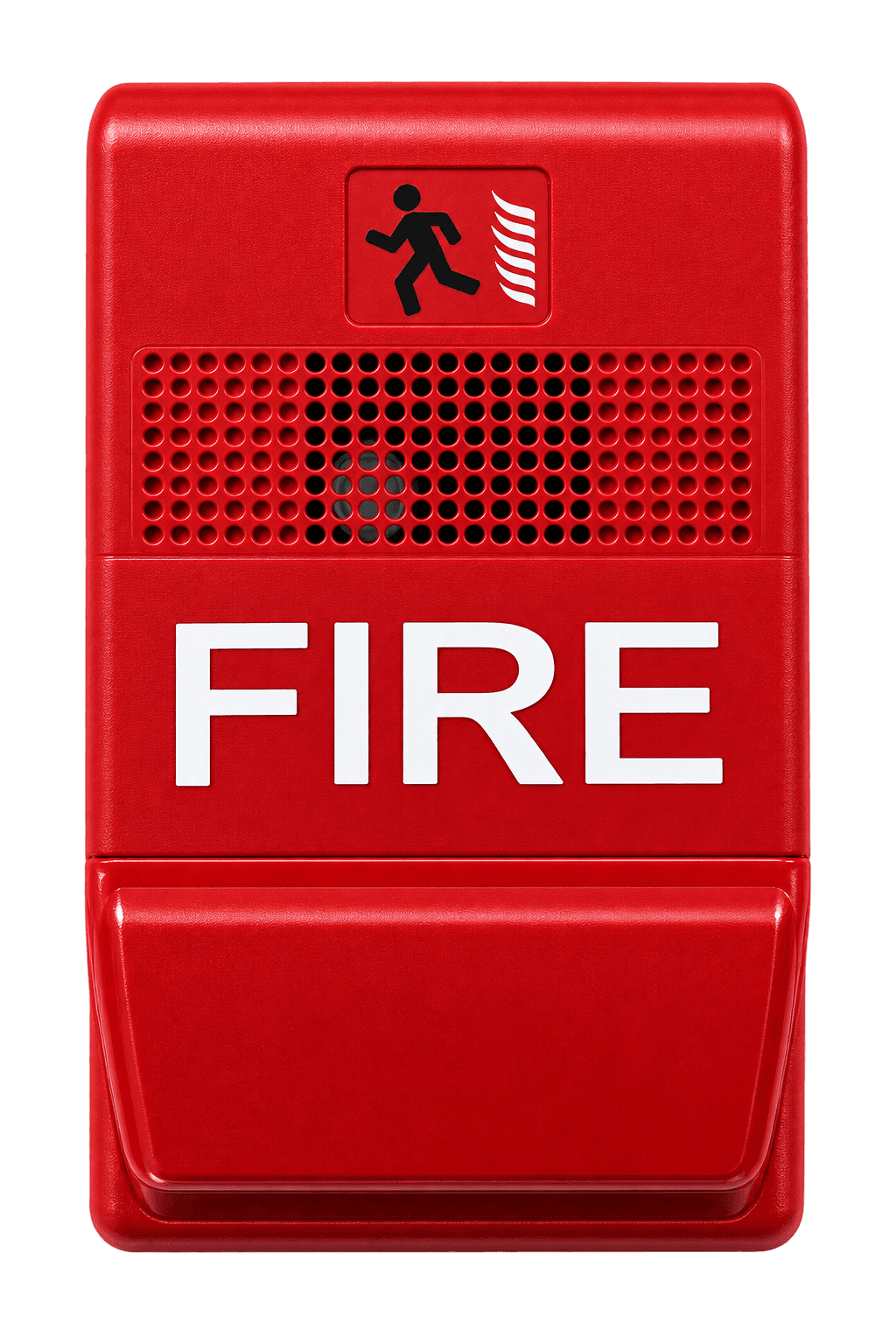

Edwards G1RF-HD (Alarm Horn)
