Visual Alarm Devices (Strobes)

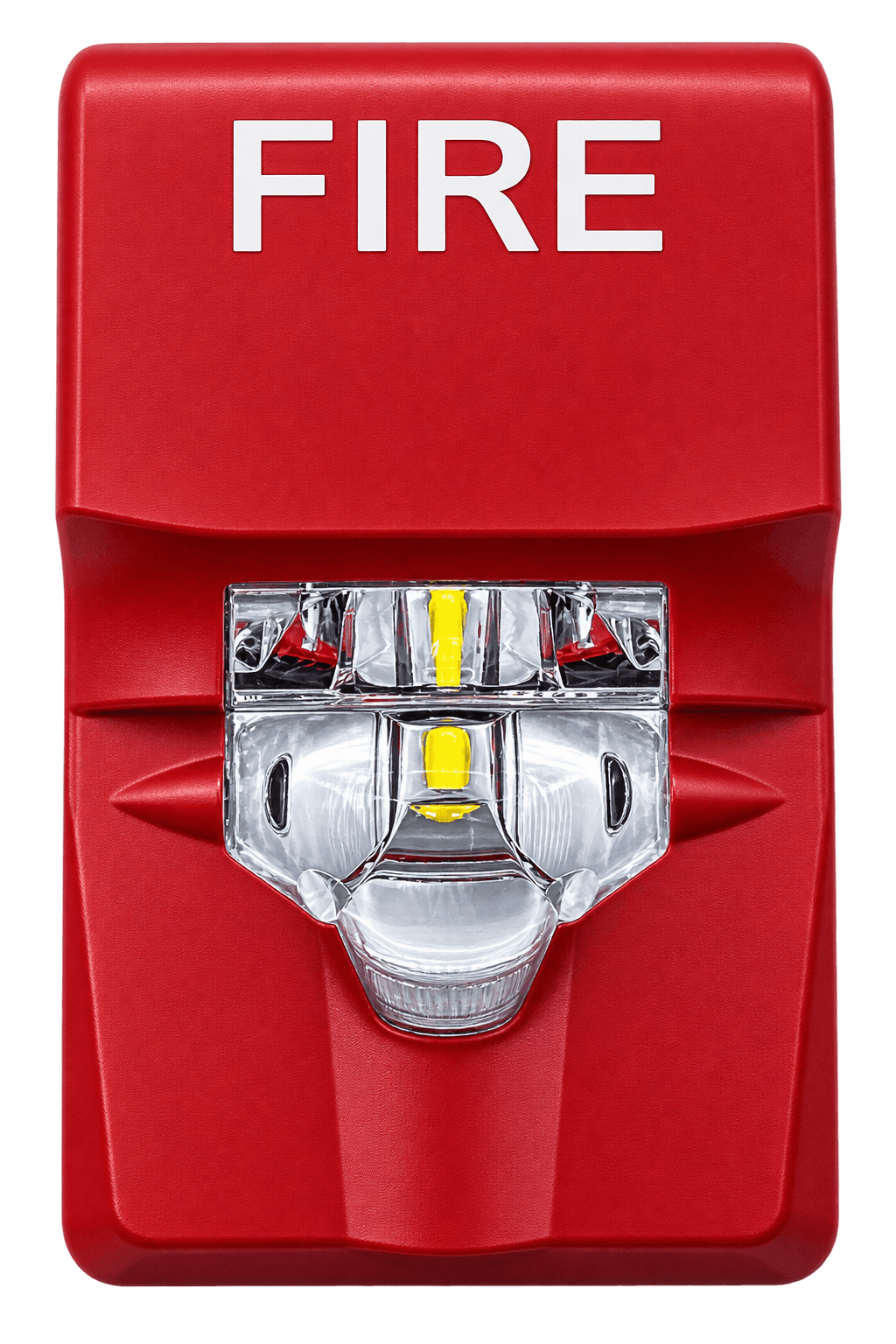

Edwards G1VRF (Compact Wall Strobe)

Edwards·SKU: G1VRF

Indicative Price

Excluding local taxes and shipping.

Compact Wall Strobe, 15-75Cd, Red, Fire Marking

infoNo online payment — request a quote and our team sends pricing. Prices are indicative and exclude taxes & shipping.

Description

Edwards G1VRF — Genesis LED G1 Series wall-mount strobe, red housing with FIRE marking.

The model code reads straight across: G1 is the wall-mount Genesis LED series, V is strobe only, R is a red housing and F is FIRE lettering. LED optics drop the current far below a xenon strobe, so a circuit carries more appliances on fewer power supplies, and Edwards permits these units to share a circuit and a field of view with xenon strobes.

  • Field-selectable 15, 30 or 75 cd, set by a slide switch under the cover
  • 24 mA on 16 to 33 VDC, or 32 mA on 16 to 33 VFWR, at every candela setting
  • About 1 flash per second, synchronized by Edwards CC Series modules and power supplies
  • 3 × 4-5/8 × 1-1/8 in.; fits a one-gang box at least 1-1/2 in. deep, no visible screws
  • 12 to 18 AWG in-out screw terminals; 32 to 122°F
  • UL 1971 listed for indoor wall-mounted public-mode signalling

G1VWF is the white version and G1VRN the red one without lettering; G1ARF is horn only and G1AVRF the horn-strobe. Older Genesis numbers beginning G1RF are the xenon generation, not this appliance.

Supplier product page

Documents & Technical Downloads

Cooper Wheelock ACMAXSB

Indicative Price

from

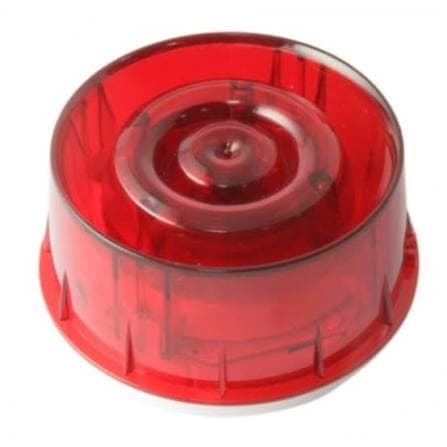

Addressable wall sounder strobe with loop isolation; red flash, pure white body.

Addressable wall sounder strobe with loop isolation; red flash, pure white body.

Indicative Price

from

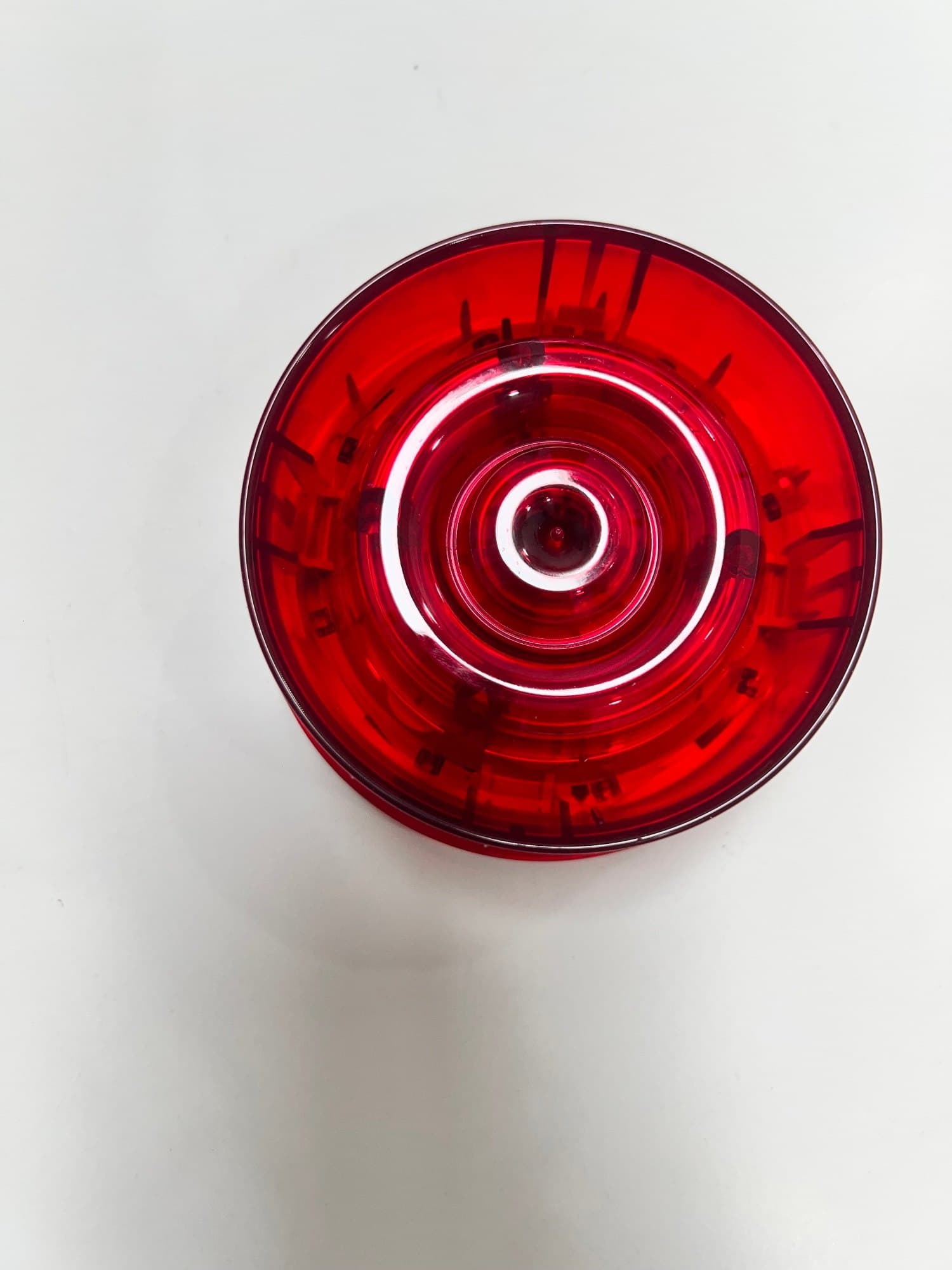

Non-isolated wall sounder strobe with red flash; pure white body.
