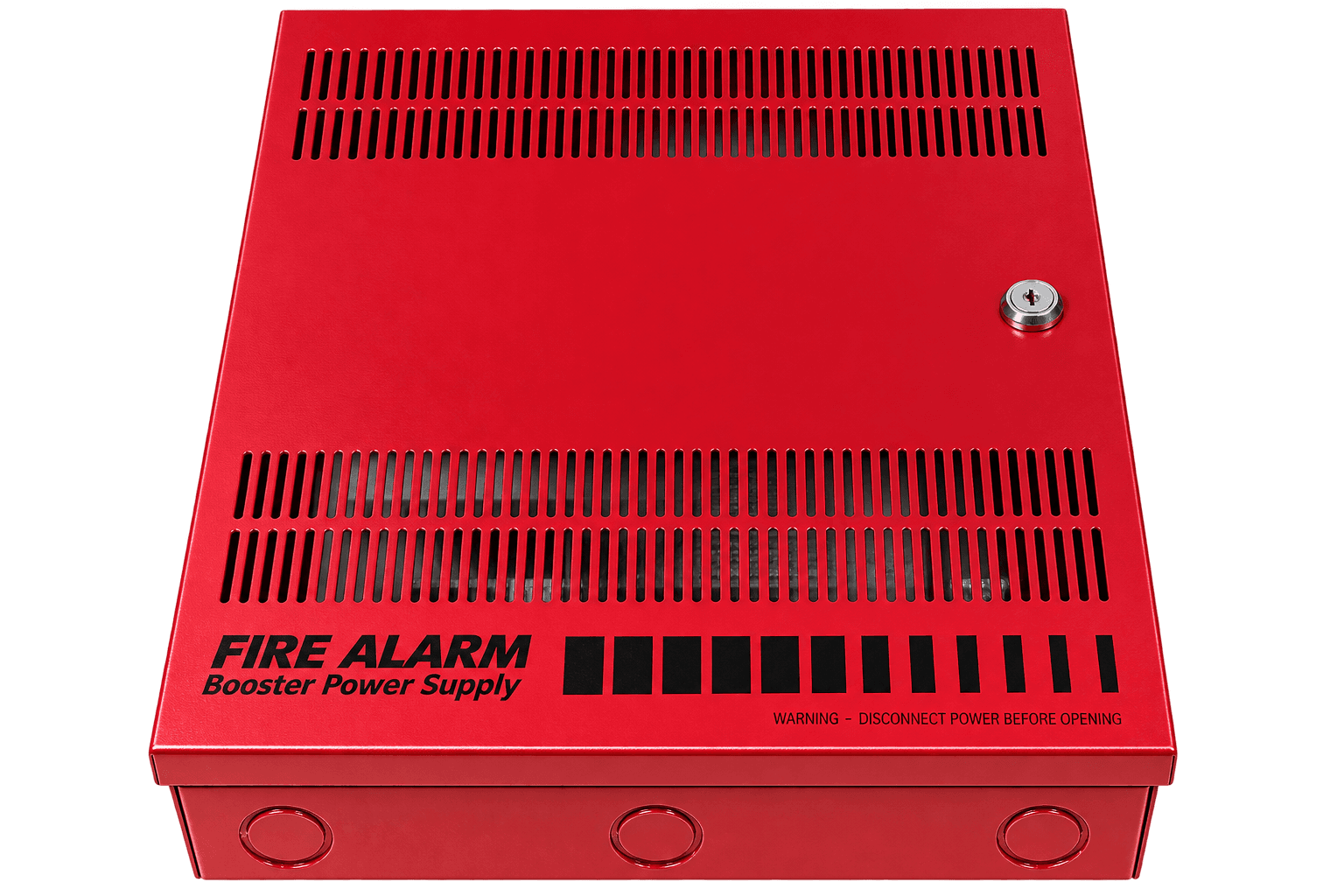

Edwards BPS10A 230 (10A Power Supply 220V) 1.png
Interface Modules

Edwards BPS10A/230 (10A Power Supply 220V)

Edwards·SKU: BPS10A/230

Indicative Price

Excluding local taxes and shipping.

Edwards BPS10A/230 10 Amp Booster Power Supply 220V

infoNo online payment — request a quote and our team sends pricing. Prices are indicative and exclude taxes & shipping.

Description

The Edwards BPS10A/230 is the 220 V version of the 10 amp Remote Booster Power Supply. It supplies filtered, regulated and supervised 24 VDC to extra notification appliance circuits or auxiliary loads wherever the main fire alarm system needs more power. It is used with Edwards life safety systems for NAC expansion, mass notification and related applications.

Key Features

  • 10 A total output across four Class B NACs, convertible to two Class A, at 3 A max. per circuit
  • Dual input circuits can activate outputs in one or two groups
  • Synchronizes Genesis and Enhanced Integrity notification appliances
  • NACs selectable for continuous, 3-3-3 temporal, or following the host panel's coded NAC
  • Seven onboard diagnostic LEDs, self-restoring overcurrent protection and ground fault detection
  • Lockable steel cabinet with room for two 10 Ah batteries and up to three Signature modules

Specifications

  • Manufacturer: Edwards
  • Part Number: BPS10A/230
  • Type: 10 A remote booster power supply, 220 V
  • AC Input: 220–240 VAC, 50/60 Hz, 580 W
  • Output: 24 VDC filtered/regulated; 3.0 A max. per circuit, 10 A total
  • Activation Input: 6–45 VDC filtered/regulated or 11–33 VDC full-wave rectified
  • Auxiliary Output: Dedicated 200 mA, 24 VDC
  • Trouble Relay: 2 A @ 30 VDC
  • Batteries: Up to 10 Ah in cabinet; up to 24 Ah in an external cabinet for fire applications
  • Operating Temperature: 32°F to 120°F (0°C to 49°C)
  • Wire Size: 18–12 AWG
  • Listings: UL 864 9th edition; UL, ULC, CSFM

Compatibility

Can be activated from a main system NAC and/or Edwards Signature Series control modules. Provides Genesis and Enhanced Integrity strobe synchronization.
