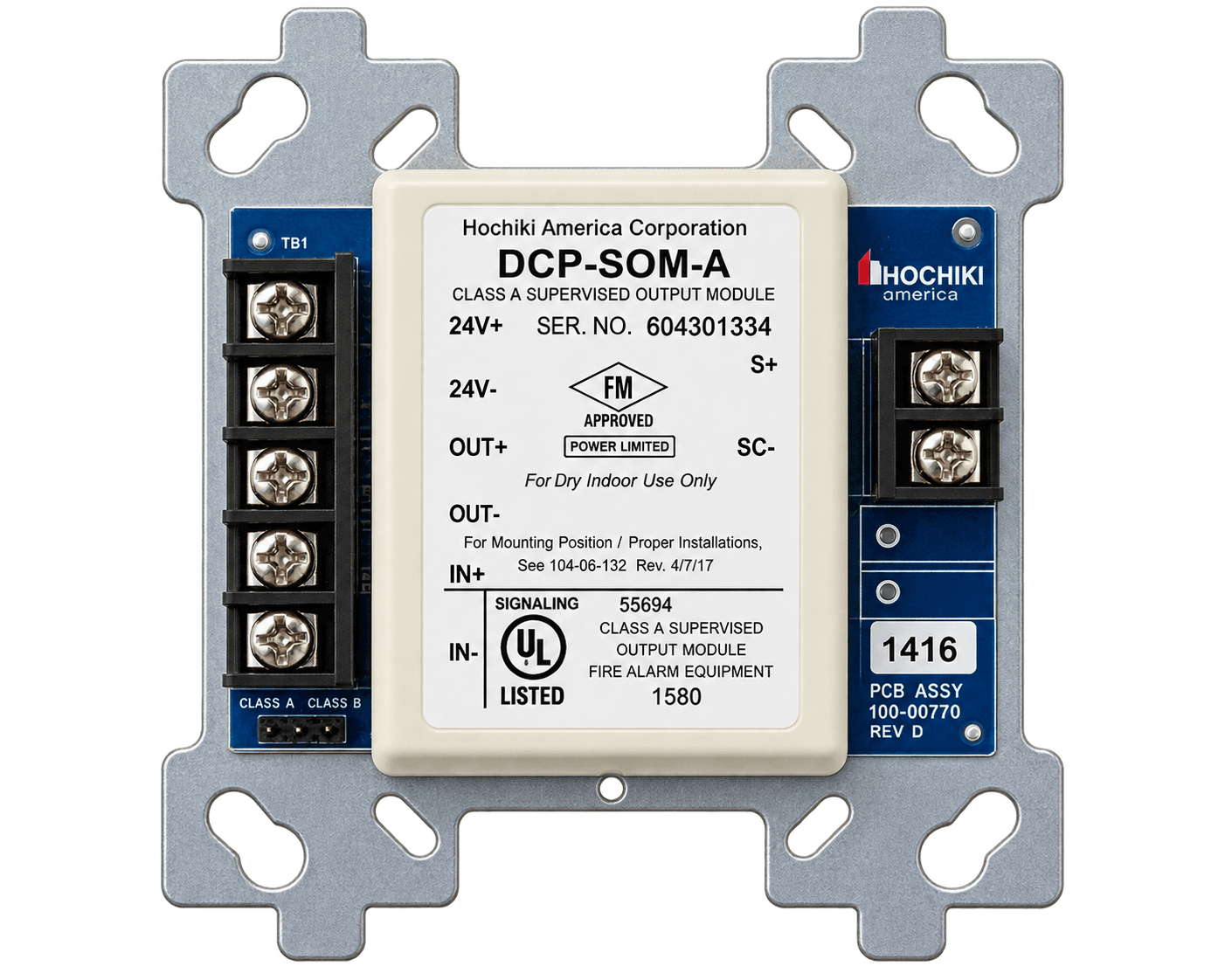

Hochiki SOM-A Class a Supervised Output Module

Hochiki·SKU: SOM-A

Indicative Price

Excluding local taxes and shipping.

Supervised Output Module

infoNo online payment — request a quote and our team sends pricing. Prices are indicative and exclude taxes & shipping.

Description

The Hochiki SOM-A supervised output module provides one Class A or Class B output circuit on a compatible DCP system. It requires a separate 24 VDC supply in addition to its SLC connection. Panel configuration supports zone operation and programmed output patterns. Short-circuit isolation is a feature of the separate SOM-AI version, not this standard module.

Manufacturer product information

Technical Specifications

Auxiliary supply24 VDC
Maximum output current2 A at 24 VDC
Operating temperature0 to 49 °C
Output circuit1 Class A or Class B circuit
SLC supply voltage25.3 to 39 VDC
Typical SLC current220 µA
