Edwards 4-NET-SM (Dual Line Dialer)

Edwards·SKU: 4-NET-SM

Indicative Price

Excluding local taxes and shipping.

Supports 42 and Contact ID formats

infoNo online payment — request a quote and our team sends pricing. Prices are indicative and exclude taxes & shipping.

Description

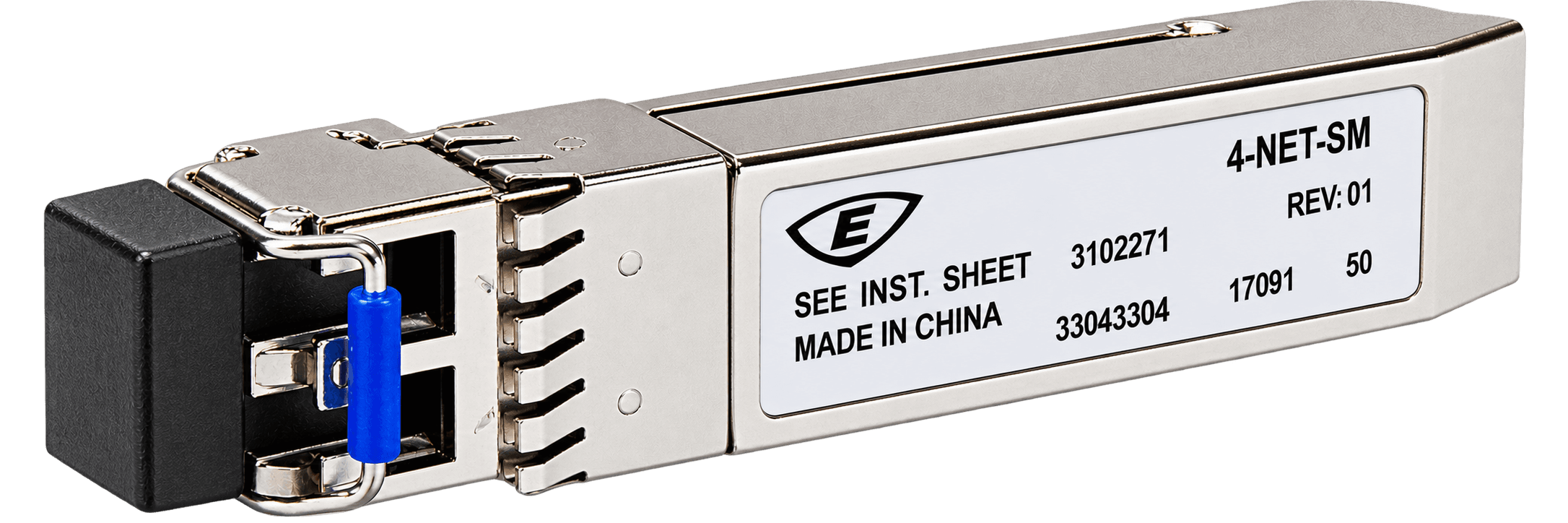

4-NET-SM is an Edwards EST4 SFP network controller for single-mode, dual-fiber cabling (100Base-LX10, 1310 nm). EST4 network controllers are small form factor pluggable transceivers that set the physical media of the panel-to-panel link. The 4-NET-SM plugs into either SFP slot on a 4-CPU, 4-ANNCPU, 4-CPUGRPH or 4-NET-AD module and is hot-swappable.

Specifications

Transceiver type 100Base-LX10, single-mode, dual-fiber
Wavelength (TX/RX) 1310 nm / 1310 nm
Fiber G.652 single-mode, 9 µm core
Cable distance 8.7 miles (14 km) per E85014-0008; E85014-0003 states 6.2 miles (10 km)
Transmit power -15 to -8 dBm
Receive power -25 to -8 dBm
Max. channel insertion loss 5 dB
Data speed 100 Mbps TX/RX
Current (standby/alarm) 5 mA at 24 VDC
Connector LC duplex
Operating environment 32 to 120 °F (0 to 49 °C), 0 to 93% RH noncondensing
Agency listings UL, ULC, FM, CSFM, EN54, CE, NYC Fire Dept.
Shipping weight 0.248 lb (0.112 kg)

Compatibility and installation notes

  • Mounts in either of the two SFP slots on 4-CPU, 4-ANNCPU, 4-CPUGRPH and 4-NET-AD modules; hot-swappable.
  • Order one 4-NET-SM for the "in" link from the previous node and a second for the "out" link to the next node; each supports one single-mode fiber pair.
  • For panel-to-panel communication only. External network connections use 4-FWAL Series adapters.
  • A single network link carries data, voice audio and firefighter telephone. Networks can be wired Class A, B, X or N.

Related models

  • 4-NET-SMH: single-mode dual-fiber, 100Base-LX40 high output, 24.8 miles (40 km); needs at least 10 dB insertion loss.
  • 4-NET-SMU and 4-NET-SMD: single-mode single-fiber bidirectional pair (LC simplex), used together.
  • 4-NET-MM: multimode dual-fiber, 100Base-FX.
  • 4-NET-CAT and 4-NET-TP: copper versions.

Documents

Specifications from Edwards data sheet E85014-0008, EST4 Network Controllers, Issue 3.0, and E85014-0003, EST4 Remote Annunciators, Issue 3.1. Manufacturer specifications are subject to change.
