Bosch D9127T POPIT Input Module with Tamper

Bosch·SKU: D9127T

Indicative Price

Excluding local taxes and shipping.

POPIT Input Module with Tamper

infoNo online payment — request a quote and our team sends pricing. Prices are indicative and exclude taxes & shipping.

Description

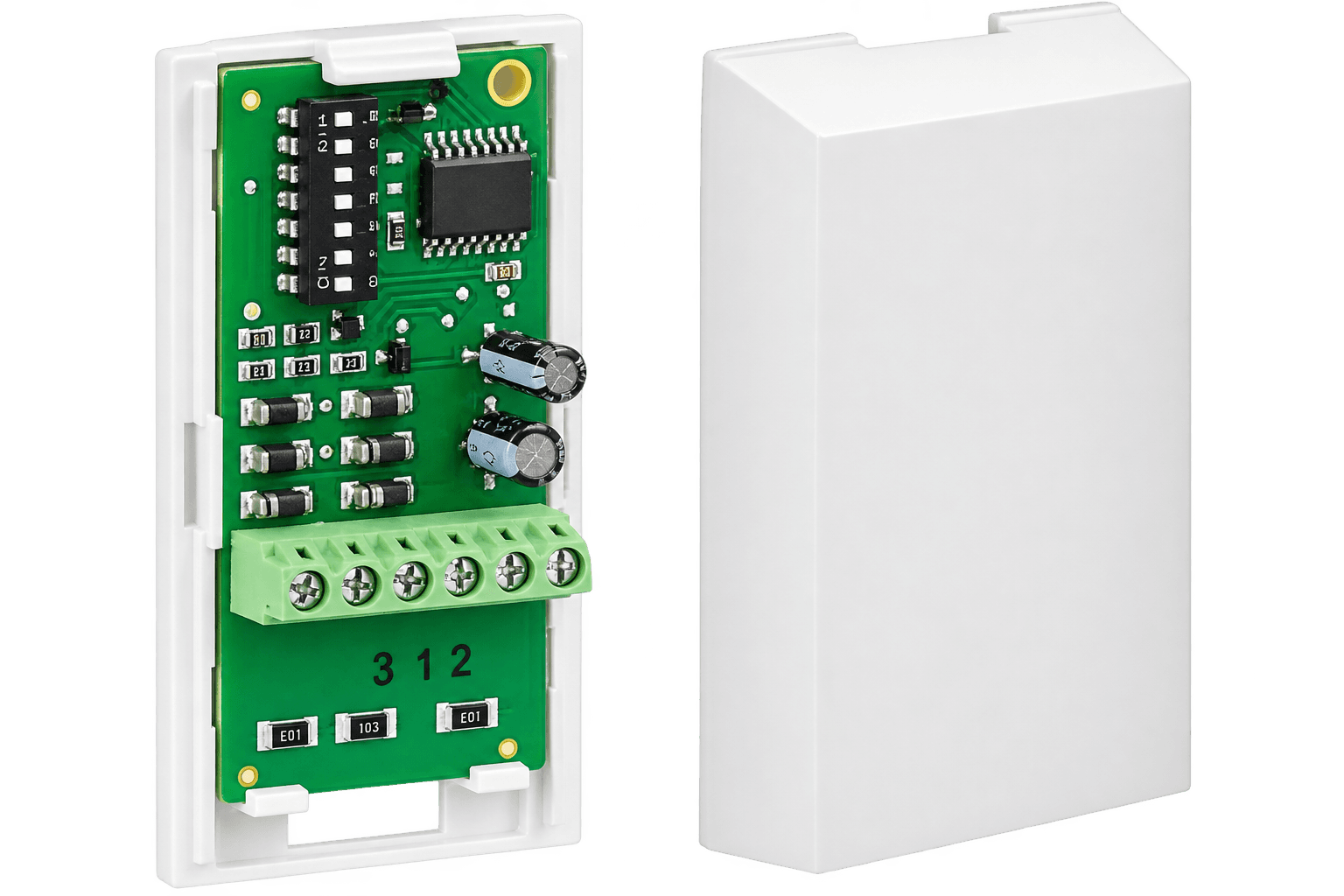

The Bosch D9127T adds an individually addressed supervised sensor loop through a compatible D8125 or B299 expansion module. This T version includes a magnetic tamper switch. DIP switches select its point number independently of its physical position on the expansion loop. A 33 kΩ end-of-line resistor supervises the sensor wiring; panel compatibility and installation requirements must be checked for the intended application.

Manufacturer product information

Technical Specifications

Dimensions8.1 × 3.8 × 2.4 cm
End-of-line resistor33 kΩ
Maximum current draw0.8 mA
Operating temperature0 to +60 °C; 0 to +50 °C for UL certificated installations
Operating voltage12 VDC nominal
Tamper switchMagnetic tamper switch included
