Interface Modules

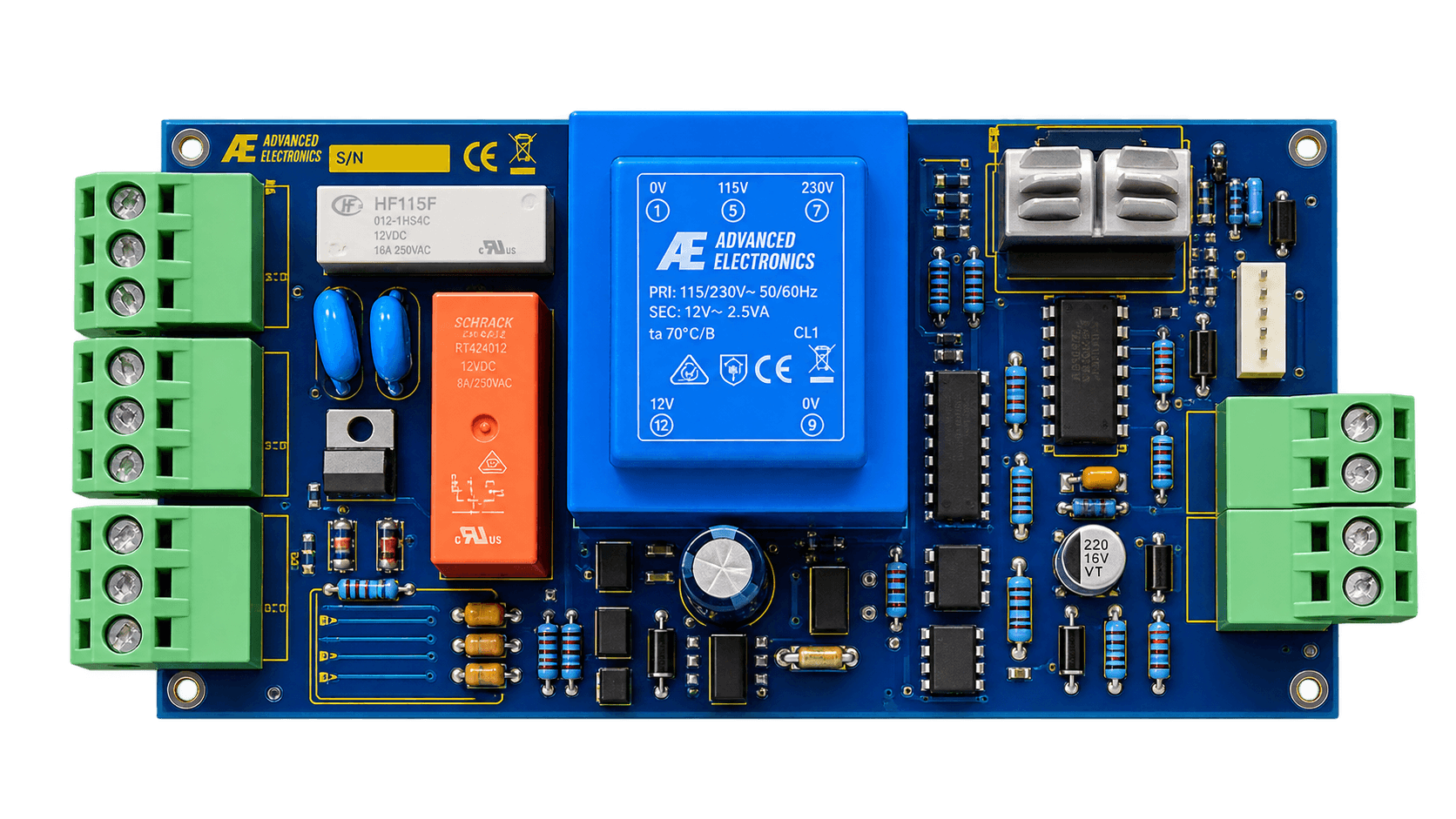

Advanced MxPro5 MXP-046-BX1 Damper Interface Module - Boxed (Apollo Protocol)

Advanced Electronics·SKU: MXP-046-BX1

Indicative Price

Excluding local taxes and shipping.

Boxed (Apollo Protocol)

infoNo online payment — request a quote and our team sends pricing. Prices are indicative and exclude taxes & shipping.

Description

The MXP-046-BX1 is the boxed Advanced damper interface for compatible Apollo-protocol systems. It combines damper motor control with two limit-switch inputs that confirm fully open and fully closed positions. The intended dampers are normally held open. Fail-safe operation applies only to electrically opened, mechanically closed dampers, and compatible panel and configuration-software versions are required.

Manufacturer product information

Technical Specifications

Data-loop current1.6 mA
Enclosure dimensions (H × W × D)300 × 200 × 150 mm
Enclosure ratingIP66
Mains supply230 VAC, 50 Hz; +10% / -15%
Motor switch rating1 A
Operating temperature-5 to +40 °C
ProtocolApollo

Documents & Technical Downloads
