Weatherproof Manual Call Points

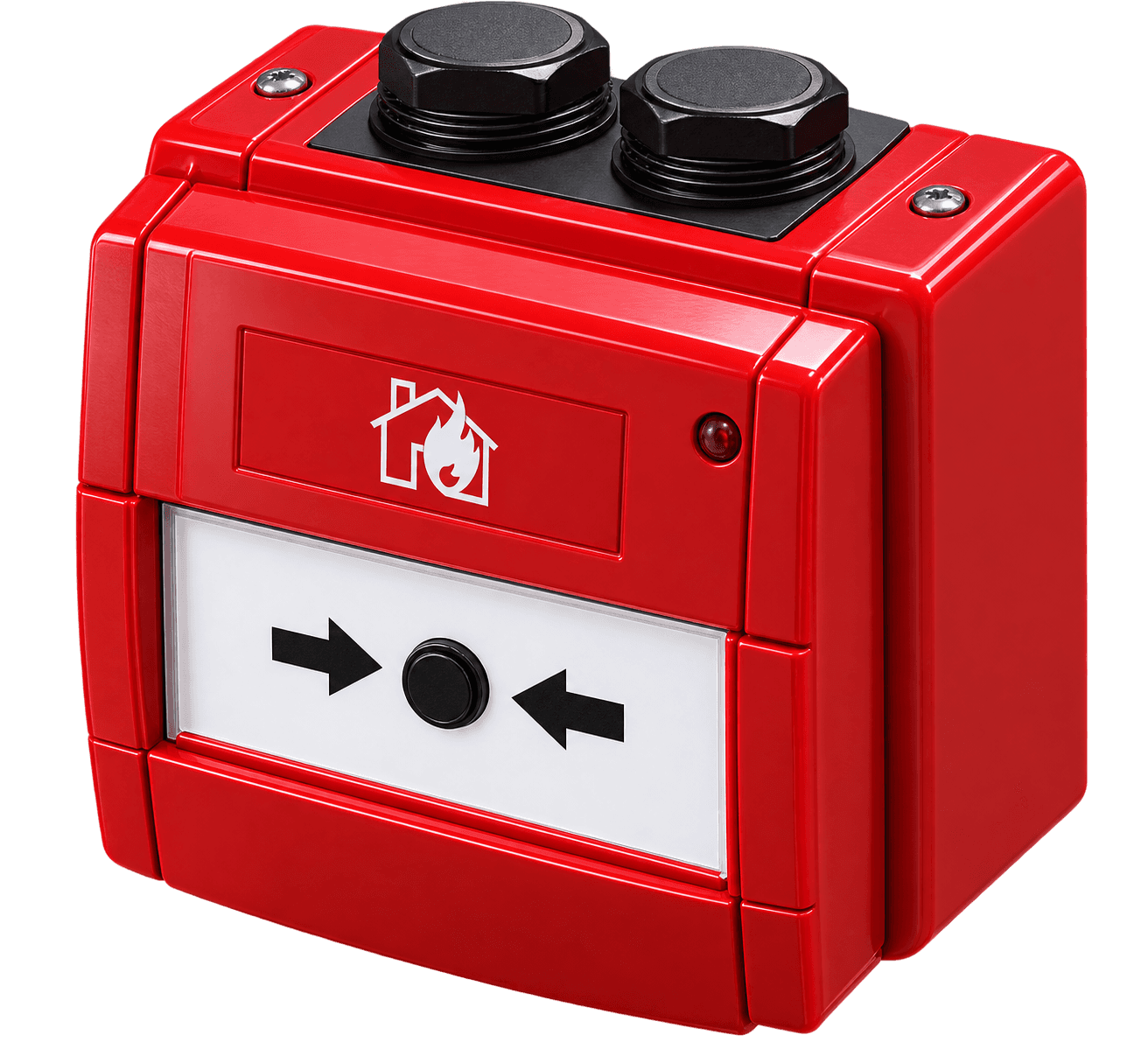

Waterproof manual call point – red (surface)

Context Plus·SKU: 58200-951IMC

Indicative Price

Excluding local taxes and shipping.

For use with range IP67 with built in isolator

infoNo online payment — request a quote and our team sends pricing. Prices are indicative and exclude taxes & shipping.

Description

The Context Plus Waterproof manual call point has a highly visible alarm indicator which can be seen from up to 10 metres away. The manual call point interrupts the polling cycle for a fast response, when activated. A combined LED indicator and front reset mechanism allows for a simple reset.

The address of each Manual Call Point is set at the commissioning stage by means of a seven-segment DIL switch. A red alarm LED is provided on the Manual Call Point. This LED is controlled independently of the Manual Call Point, by the fire control panel. Once activated, the Manual Call Point can be reset by inserting the reset key into the front facing LED, turning clockwise until a positive click and reset occurs. The Context Plus waterproof Manual Call Point incorporates a short circuit isolator which will ensure its operation in the event of a short circuit fault on the loop. Isolator operation is indicated by a yellow LED.

  • Resettable operating element
  • Easy access, front reset mechanism
  • Ergonomic reset key
  • EN 54-11 and EN 54-17 Compliant.
  • 170° viewable LED
  • Incorporates a short circuit isolator
  • IP67 rated

Manufacturer technical information

Technical Specifications

Address settingSeven-segment DIL switch
IP ratingIP67
Operating elementResettable
Short-circuit isolatorBuilt in

Documents & Technical Downloads

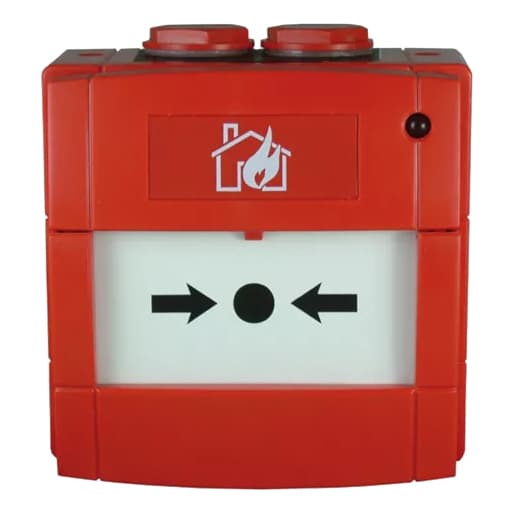

Addressable Waterproof Manual Call Point with Built-in Isolator (IP67)

Addressable Waterproof Manual Call Point with Built-in Isolator (IP67)

Indicative Price

from

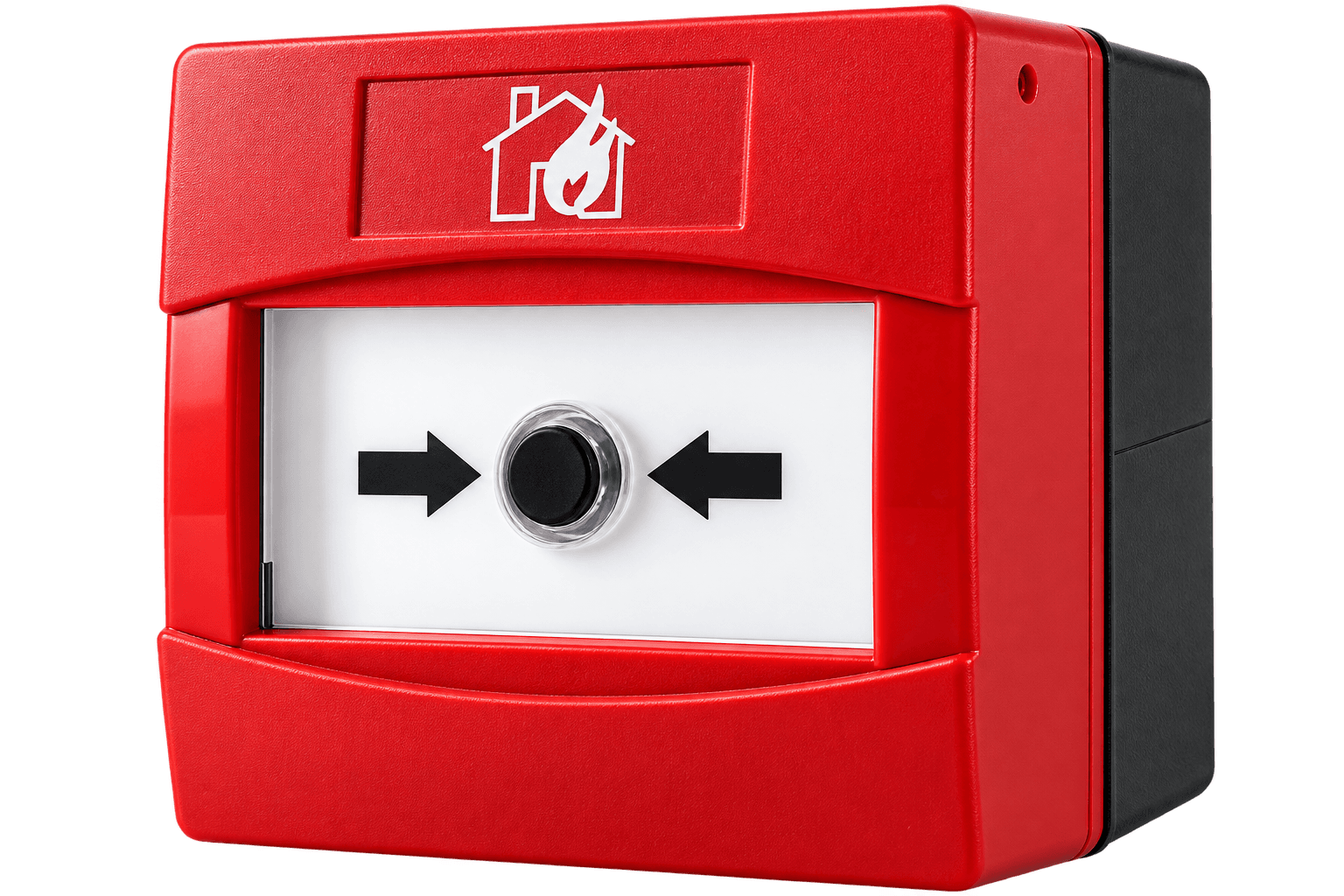

Advanced Axis-WCP Axis EN Intelligent Waterproof Manual Call Point (RED)
