Mounting Boxes

Twin Input Output unit with Back Box & with built-in 20 devices isolator

Context Plus·SKU: SA4700-104IMC

Indicative Price

Excluding local taxes and shipping.

Back Box & with built-in 20 devices isolator

infoNo online payment — request a quote and our team sends pricing. Prices are indicative and exclude taxes & shipping.

Description

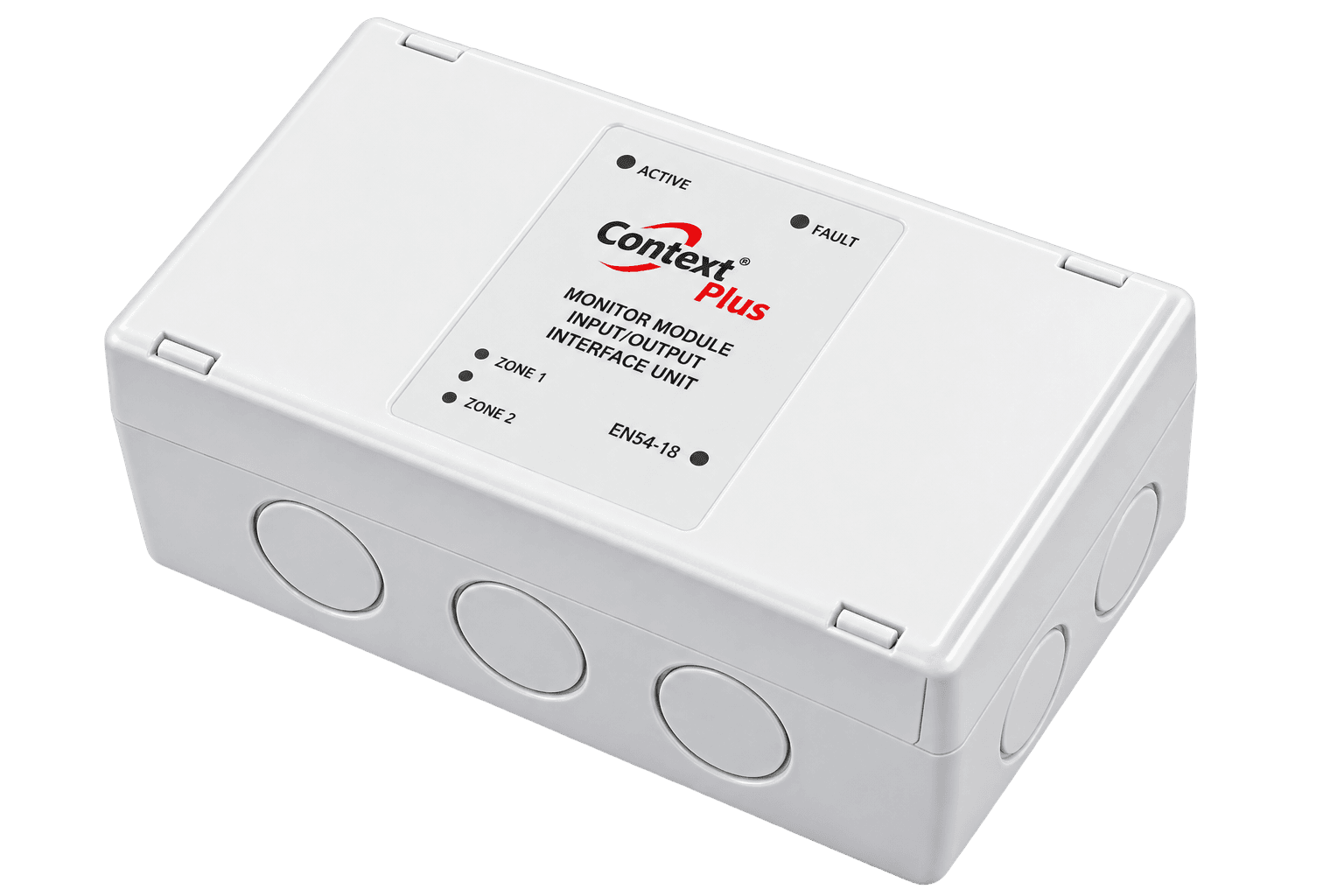

The Context Plus Intelligent Addressable Twin Input/Output Unit provides the function of two Input/Output Units within one enclosure. The two units are electrically independent of each other. There is a DIL switch on each unit to set the address. Both input/output units in the enclosure provide supervision of one or more normally open volt free contacts connected to a single pair of cables and a set of changeover relay output contacts.

The Intelligent Twin Input/Output Unit is available in the new faceplate style enclosure. This can be mounted with the supplied backbox for surface mounting or flush mounted using a UK double gang, flush mounting back-box of minimum depth 30mm.

  • Improved design for ease of wiring meaning faster installation
  • Incorporates a short circuit isolator
  • Nine pre-configured modes
  • Configurable input styles
  • Earth fault monitoring

Manufacturer technical information

Technical Specifications

Flush backbox minimum depth30 mm
Operating modesNine preconfigured modes
Short-circuit isolatorBuilt in
