Control Module

Single Output Control Module

Morley·SKU: MI-DCMOE

Indicative Price

Excluding local taxes and shipping.

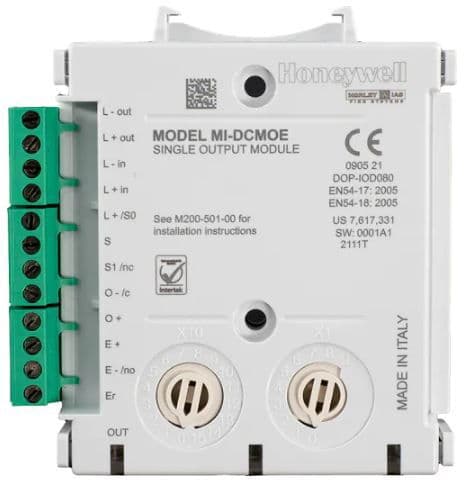

Single Output Control Module

infoNo online payment — request a quote and our team sends pricing. Prices are indicative and exclude taxes & shipping.

Description

The MI-DCMOE switches an external supply to connected devices under a compatible Morley panel’s control. Supervised operation monitors load wiring and supply voltage; unsupervised operation instead provides a Form C changeover contact without load or supply monitoring. A built-in short-circuit isolator, rotary address switch and plug-in terminals support installation and maintenance.

Manufacturer product information

Technical Specifications

IP ratingIP40; IP44 in specified M200E-SMB enclosure
Maximum standby current160 µA at 24 VDC, without communications
Operating temperature-20 to +60 °C
Operating voltage15 to 32 VDC
Unsupervised Form C rating2 A at 30 VDC, resistive load
Weight118 g
