Single Input Monitor Module

Morley·SKU: MI-DMMIE

Indicative Price

Excluding local taxes and shipping.

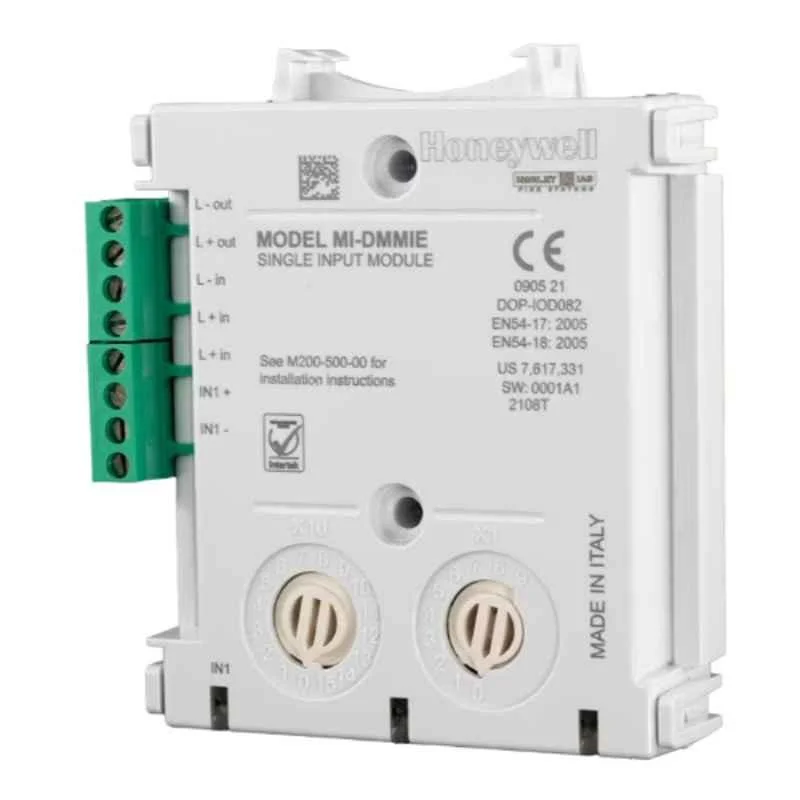

Single Input Monitor Module

infoNo online payment — request a quote and our team sends pricing. Prices are indicative and exclude taxes & shipping.

Description

The MI-DMMIE supervises one external input circuit on compatible Morley addressable systems. Inputs support latched status monitoring or analogue resistance supervision. Built-in short-circuit isolation, rotary address switches and plug-in terminals assist installation and fault finding. The module can be installed in a suitable wall box or on a DIN rail.

Manufacturer product information

Technical Specifications

Dimensions (H × L × W)22 × 82 × 93 mm, including terminal block
IP ratingIP40; IP44 in specified M200E-SMB enclosure
Operating temperature-20 to +60 °C
Operating voltage15 to 32 VDC
Short-circuit isolatorBuilt in
Supervised input circuits1
