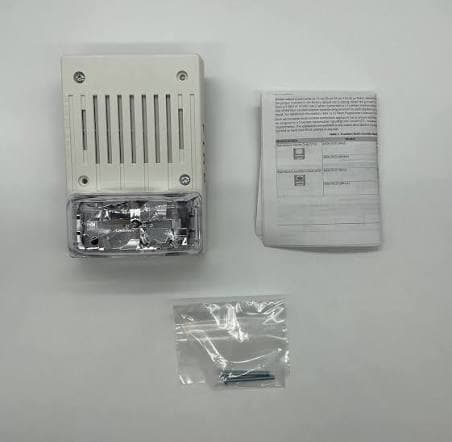

Simplex 4906-9230 (True Alert Multi-Candela Horn Strobe, Ceiling-Mount)

Simplex·SKU: 4906-9230

Indicative Price

Excluding local taxes and shipping.

rueAlert Multi-Candela Horn Strobe, Ceiling-Mount, 15/30/75/110cd, White

infoNo online payment — request a quote and our team sends pricing. Prices are indicative and exclude taxes & shipping.

Description

The Simplex 4906-9230 is a white ceiling-mounted TrueAlert addressable horn/strobe. A compatible IDNAC circuit provides power, supervision and individual appliance control. Its xenon strobe offers selectable intensity, while the horn supports panel-selected alarm patterns and high or low output. Magnet-test diagnostics can identify the appliance and exercise its audible and visible outputs.

Manufacturer product information

Technical Specifications

ControlAddressable IDNAC SLC
Horn patternsTemporal, March Time (60 or 120 BPM), continuous
Housing colourWhite with red FIRE lettering
MountingCeiling
Strobe flash rate1 Hz, synchronised
Strobe intensity15, 30, 75 or 110 cd
