Smoke Detectors

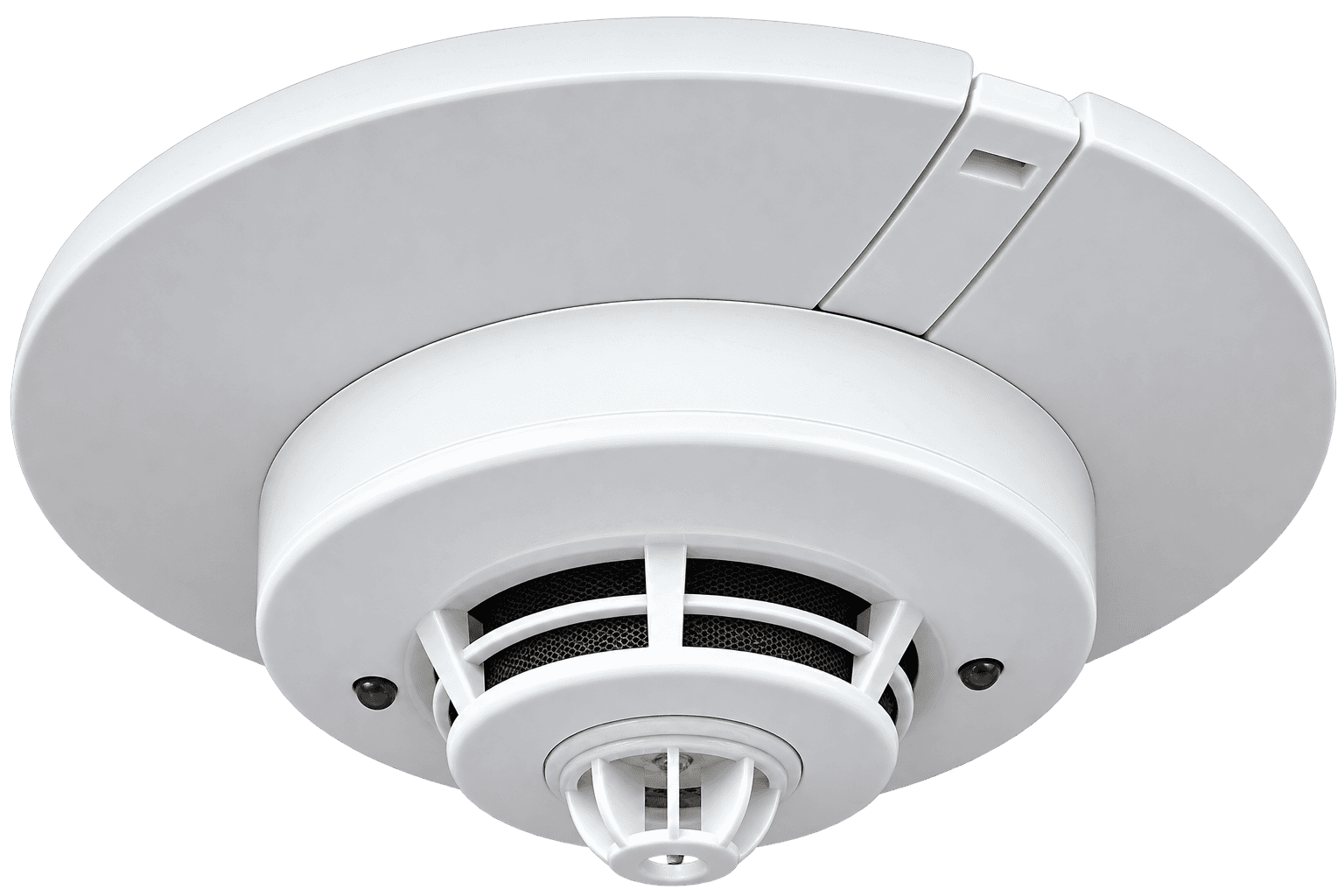

Mircom SD-100-4WP

Mircom·SKU: SD-100-4WP

Indicative Price

Excluding local taxes and shipping.

Mircom SD-100-4WP

infoNo online payment — request a quote and our team sends pricing. Prices are indicative and exclude taxes & shipping.

Description

The Mircom SD-100-4WP is a 4-wire photoelectric smoke detector in the SD-100 family. The WP version provides smoke sensing without the fixed-temperature element used in the WT variants. Two LEDs provide wide-angle status visibility, and the detector supports the optional RSR-100 sensitivity reader. Four-inch and six-inch base configurations are identified separately in the manufacturer ordering information.

Manufacturer product information

Technical Specifications

Circuit wiring4-wire
Detection methodPhotoelectric smoke
Maximum standby current140 µA
Operating voltage10.5 to 33 VDC
Sensitivity readerOptional RSR-100
Thermal elementNot fitted on WP variant
