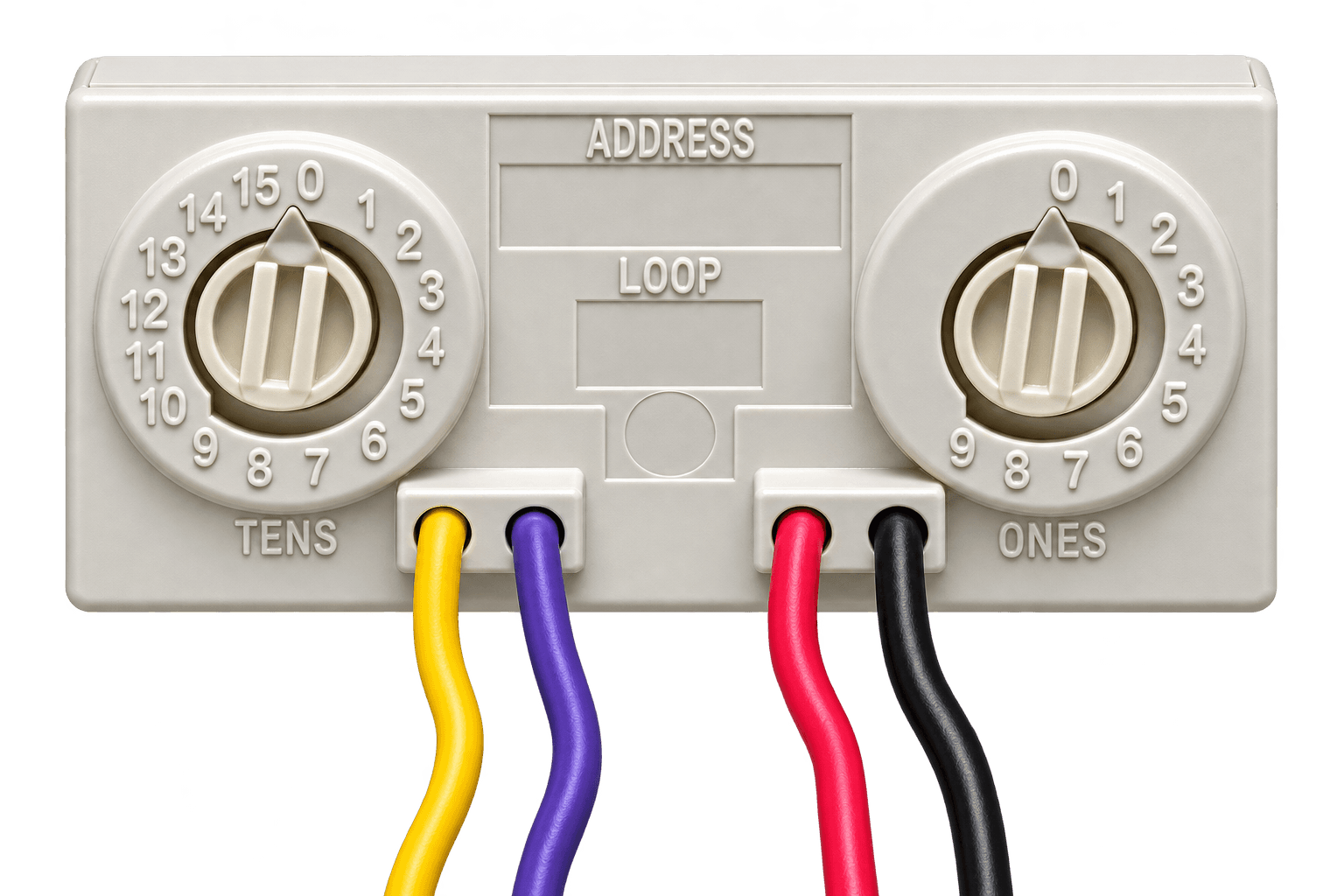

Mircom MIX-M501MAP (Monitor Module)

Mircom·SKU: MIX-M501MAP

Indicative Price

Excluding local taxes and shipping.

The MIX-M501MAP is intended for use in intelligent, two-wire systems where the individual address of each module is selected using rotary decade switches

infoNo online payment — request a quote and our team sends pricing. Prices are indicative and exclude taxes & shipping.

Description

The MIX-M501MAP monitors normally open dry-contact devices on a compatible Mircom intelligent system. Its supervised initiating circuit uses Class B wiring. Rotary decade switches set the module address; Advanced Protocol and legacy CLIP operation depend on the control-panel configuration. The miniature housing can fit behind a connected device.

Manufacturer product information

Technical Specifications

Dimensions (H × W × D)1.3 × 2.75 × 0.65 in
End-of-line resistor47 kΩ
Input circuitClass B
Operating temperature0 to 49 °C
Operating voltage15 to 32 VDC
