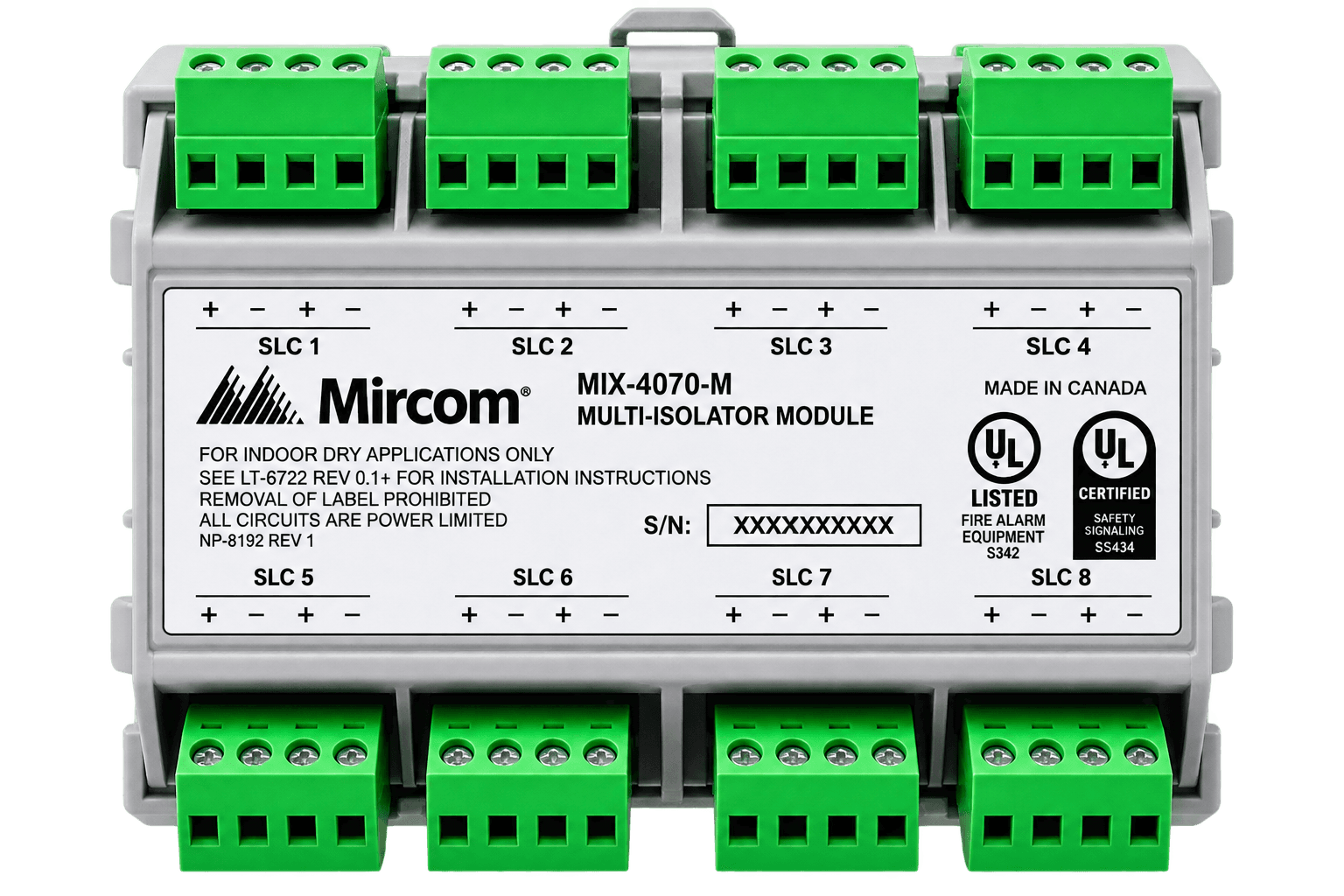

Mircom MIX-4070-M 1.png
Isolator Modules

Mircom MIX-4070-M

Mircom·SKU: MIX-4070-M

Indicative Price

Excluding local taxes and shipping.

4000 SERIES MULTI ISOLATOR MODULE

infoNo online payment — request a quote and our team sends pricing. Prices are indicative and exclude taxes & shipping.

Description

The MIX-4070-M Multi Isolator Module is a device that enables the SLC communication loop to continue operating when a short circuit occurs on one section of the loop. It is designed to be used with an MGC compatible Fire Alarm Control Unit.

Features
  • Provides 8 isolator section which are electrically isolated from each other.
  • Allows the SLC loop to continue operating when a short circuit occur on one section of the loop.
  • Each isolation section has an LED indicator to signal normal condition (blinks) or short circuit condition (solid).
  • Self-restoring capability on each section once a short circuit is removed.
  • Affordable and space efficient.
  • Easy identification of a faulty SLC section.
  • Quick and easy installation.
  • No module address required.
  • Any unused section can be left unconnected without affecting other sections.
  • Compatible with FX-400, FX-401 and Flex-Net FX-4000 Fire alarm control panels.
  • Up to 2 modules can be mounted on UL/ULC listed backbox enclosure, BB-4002R.
  • Up to 6 modules can be mounted on UL/UL listed backbox enclosure, BB-4006R.
  • Mounting bracket kit allows to mount it on any other UL/ULC listed equivalent backbox enclosure.

Ordering Information

  • MIX-4070-M: 4000 Series Multi Isolator Module (8 isolator sections)
  • BB-4002R: Box for 2 MIX-4000 Multi modules, red door
  • BB-4006R: Box for 6 MIX-4000 Multi modules, red door
  • MGC-4000-BR: Mounting Bracket Kit for Multi Modules

Agency Listings

*Please contact local Mircom Sales Representative for regional availability.

Manufacturer technical information

Documents & Technical Downloads

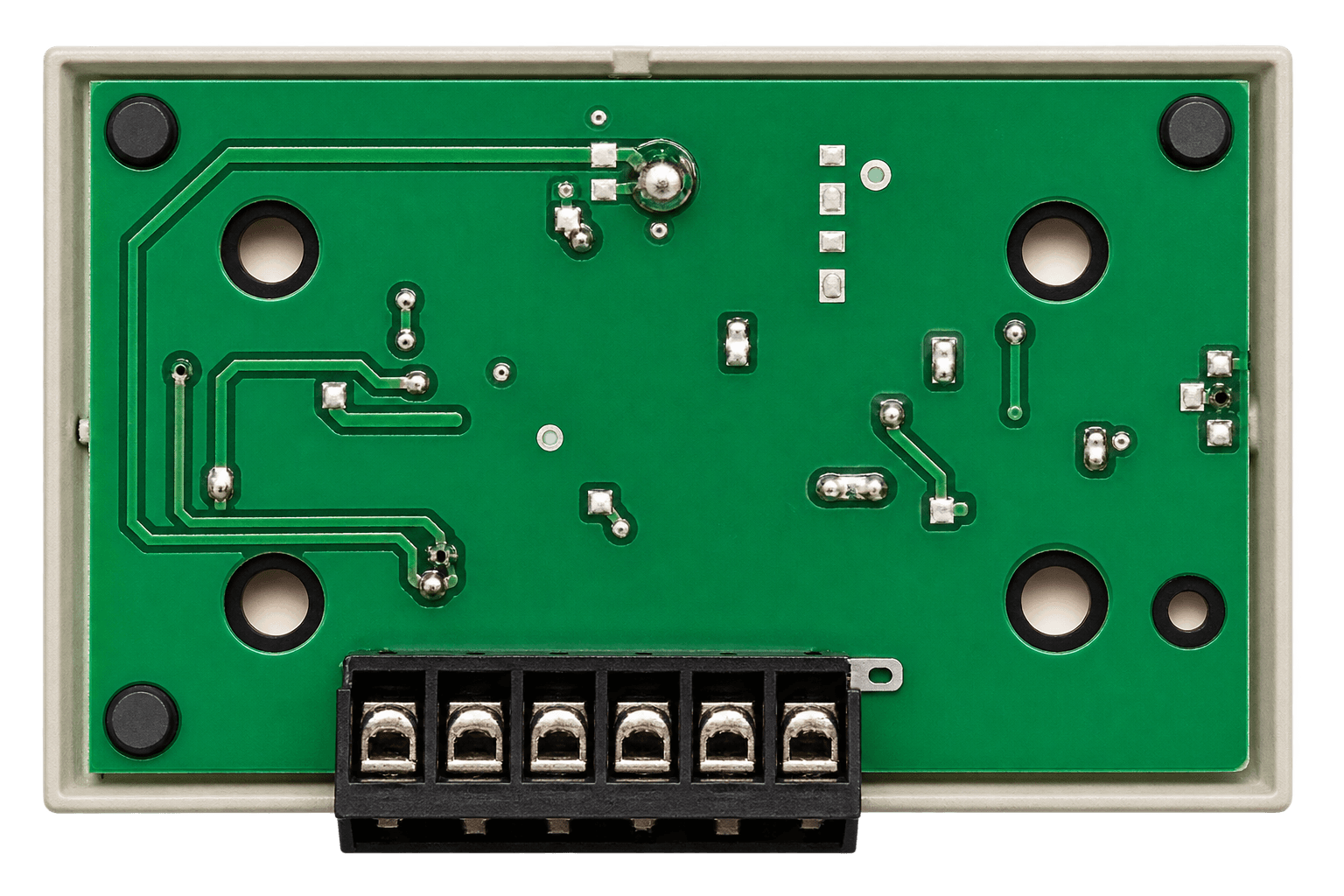

Simplex 4090-5206 (Line Isolator Module)

Simplex 4090-5206 (Line Isolator Module)

Indicative Price

from

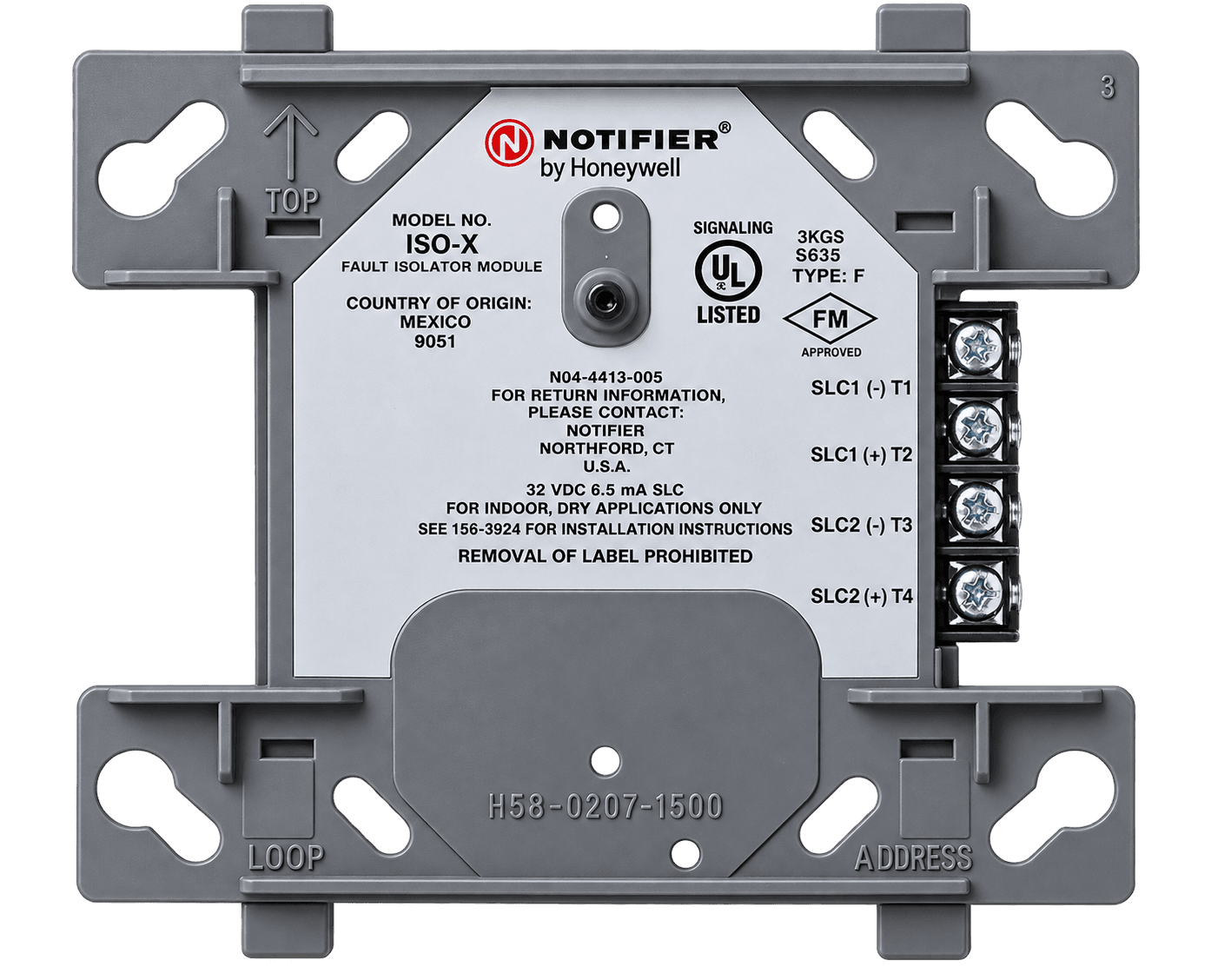

ISO-X Isolator Module
