Heat Detectors

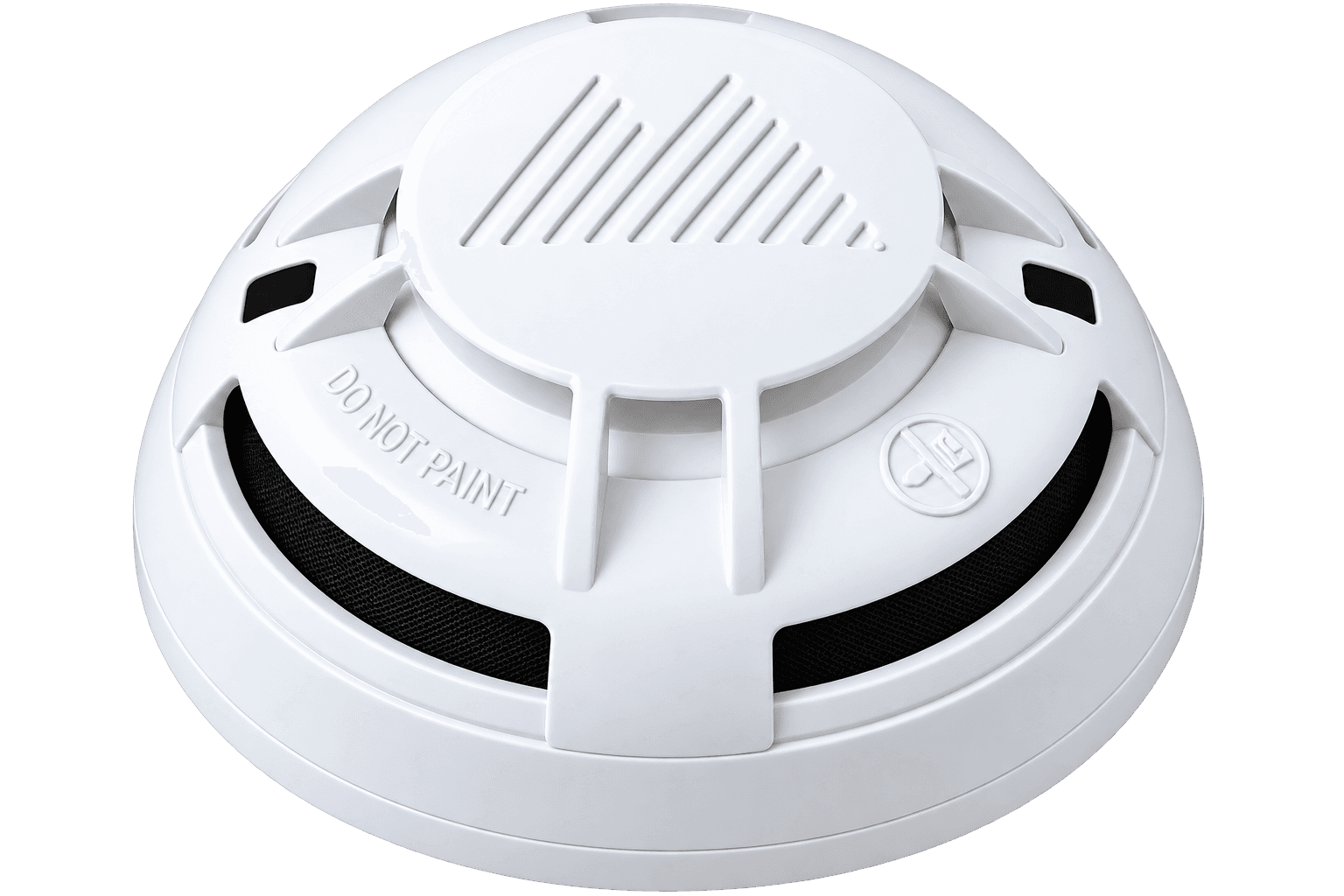

Mircom MIX-4030 (TriMode Heat Detector WO Isolation)
Mircom·SKU: MIX-4030
Indicative Price
Excluding local taxes and shipping.
Mircom MIX-4030 4000 Series TriMode Heat Detector WO Isolation
infoNo online payment — request a quote and our team sends pricing. Prices are indicative and exclude taxes & shipping.
Description
MIX-4030 is the MIX-4030 (TriMode Heat Detector WO Isolation) variant. The following manufacturer information covers the listed range; refer to the model-specific ordering table and technical fields.
NEW MIX-4030 / MIX-4030-ISO are tri-mode heat detectors with an integrated microprocessor that constantly monitor the environment in order to provide early warning of a fire condition. All MIX-4000 series smoke sensors communicate with panels using a fully digital protocol.
FEATURES
- The MIX-4030 / MIX-4030-ISO work with MGC compatible control panels
- Can add up to 240 MIX-4000 series devices on a single SLC
- Different LED colors for Alarms and Troubles
- Use advanced software algorithms for smoke detection
- Protect against nuisance alarms caused by dust, insects or other debris
- Multiple sensitivity settings
- Compatible with the full series of MIX-4000 input and control modules
- A unique Anti-Tamper feature provides additional security to all devices
- Easy address configuration with the hand-held programmer MIX-4090
OPERATING MODES
- 57°C (135°F) – Fixed Heat detection
- 79°C (175°F) – Fixed Heat detection
- 57°C (135°F) – Rate of Rise
BENEFITS
- Open style mounting bases offer easy wiring and low pressure locking
- Bases are available in 4” or 6” sizes
- In addition, all bases have a detachable tab for easy device address labeling
- The MIX-4030-ISO has a bi-directional short-circuit isolator in order to protect against wiring faults and loop failure
- Low standby current
- Magnet test option helps with commissioning and maintenance
ORDERING INFORMATION*
| MIX-4030 | TRI-MODE HEAT DETECTOR W/O ISOLATION |
| MIX-4030-ISO | TRI-MODE HEAT DETECTOR WITH ISOLATION |
AGENCY LISTINGS
*Please contact local Mircom Sales Representative for regional availability.
Technical Specifications
| Detection method | Tri-mode heat |
|---|---|
| Short-circuit isolator | Not included |
