Mircom MIX-2351RAP (Smoke Sensor) 1.png
Smoke Detectors

Mircom MIX-2351RAP (Smoke Sensor)

Mircom·SKU: MIX-2351RAP

Indicative Price

Excluding local taxes and shipping.

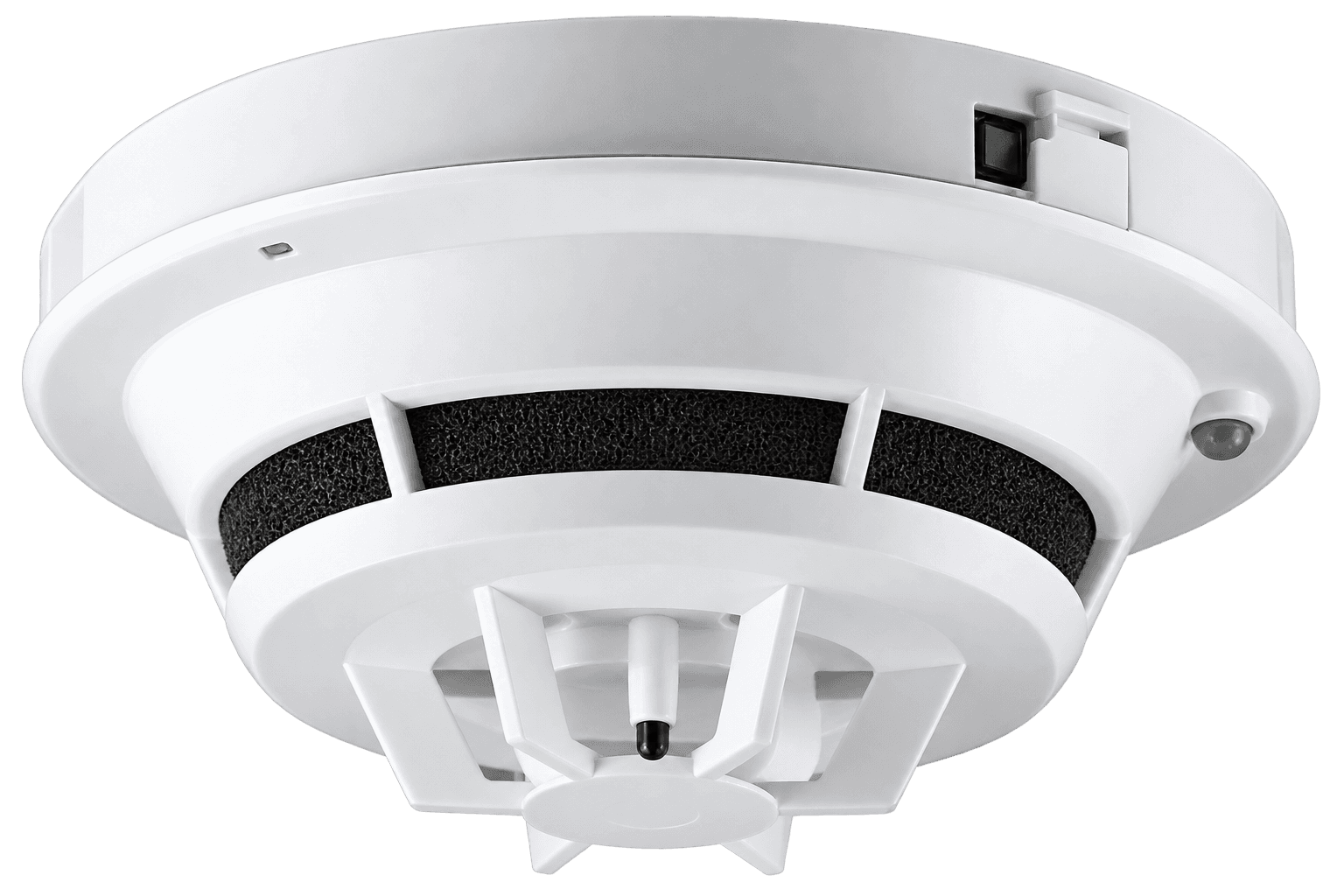

MIX-2351RAP is a plug-in type smoke sensor that combines a photo-electronic sensing chamber with addressable-analog communications

infoNo online payment — request a quote and our team sends pricing. Prices are indicative and exclude taxes & shipping.

Description

MIX-2351RAP is the MIX-2351RAP (Smoke Sensor) variant. The following manufacturer information covers the listed range; refer to the model-specific ordering table and technical fields.

The Select Series low profile smoke detectors are intelligent addressable plug-in detectors with point ID capability that enables each detector address to be set with rotary address switches providing exact device locations.

Detector sensitivity is continually monitored and reported to the fire alarm control panel. These intelligent sensors utilize a state-of-the-art thermistor sensing circuit for fast response.
Mircom’s Advanced Protocol uses a high speed communication protocol that greatly increases the speed of communication between the intelligent devices.
The modern design and expanded color options support contemporary aesthetic demands. In addition, each detector is constructed for exceptional installation and maintenance efficiency.

The Select Series MIX-2351AP(A) photoelectric detector’s re-designed optical sensing chamber is engineered to sense smoke produced by a wide range of combustion sources in accordance with more stringent code standards. The sensitivity of Select Series detectors can be programmed using the control panel software to suit the environment.
The MIX-2351RAP(A) photoelectric detector is also remote test capable for use with a duct smoke detector.
The MIX-2351TAP(A) multi-sensor detector offers both photoelectric detection or thermal detection through dual electronic thermistors at 135°F (57°C) fixed temperature thermal sensing.

FEATURES

  • Multi-criteria detection
  • Designed to meet UL 268 7th Edition and UL 521 Listed. (MIX-2351AP/TAP/RAP)
  • Designed to meet CAN/ULC S529 Rev 4 and CAN/ULC S530 listed. (MIX-2351APA/TAPA/RAPA)
  • New modern profile
  • Analog communications
  • Low standby current
  • Rotary address switches
  • Dual LEDs for 360° visibility
  • Expanded color kit options

ORDERING INFORMATION

Intelligent Detectors
MIX-2351AP Intelligent Photoelectric smoke detector – UL White
MIX2351APA Intelligent Photoelectric smoke detector – ULC White
MIX-2351RAP Intelligent Photoelectric smoke detector, remote test capable, for use with duct smoke detectors – UL White
MIX-2351RAPA Intelligent Photoelectric smoke detector, remote test capable, for use with duct smoke detectors – ULC White
MIX-2351TAP Intelligent Photoelectric smoke detector with Thermal – UL White
MIX-2351TAPA Intelligent Photoelectric smoke detector with Thermal – ULC White
Bases
B501-WHITE 4″ Flangeless mounting base – UL/ ULC White
B501-IV 4″ Flangeless mounting base – UL/ ULC Ivory
B300-6 6″ Flanged mounting base – UL White
B300-6-IV 6″ Flanged mounting base – UL Ivory
B300A-6 6″ Flanged mounting base – ULC White
B300A-6-IV 6″ Flanged mounting base – ULC Ivory
B200SR-WH Standard Sounder Base – UL White
B200SR-IV Standard Sounder Base – UL Ivory
B200SRA-WH Standard Sounder Base – ULC White
B200SRA-IV Standard Sounder Base – ULC Ivory
B200SR-LF-WH Low-frequency Sounder Base – UL White
B200SR-LF-IV Low-frequency Sounder Base – UL Ivory
B224BI-WH Isolator Base – UL White
B224BI-IV Isolator Base – UL Ivory
B224BIA-WH Isolator Base – ULC White
B224BIA-IV Isolator Base – ULC Ivory
B224RB-WH Relay Base – UL White
B224RB-IV Relay Base – UL Ivory
B224RB-WH Relay Base – ULC White
B224RB-IV Relay Base – ULC Ivory
Accessories
CK300 Color Kit (includes cover and trim ring) – Pack of 10 White
CK300-IV Color Kit (includes cover and trim ring) – Pack of 10 Ivory
CK300-BL Color Kit (includes cover and trim ring) – Pack of 10 Black
TR300 Trim Ring White
TR300-IR Trim Ring Ivory
RA100Z Remote LED Annunciator – UL Ivory
RA100ZA Remote LED Annunciator – ULC Ivory

AGENCY LISTINGS

Manufacturer technical information

Technical Specifications

Detection methodPhotoelectric smoke
Remote testSupported for duct smoke detection
