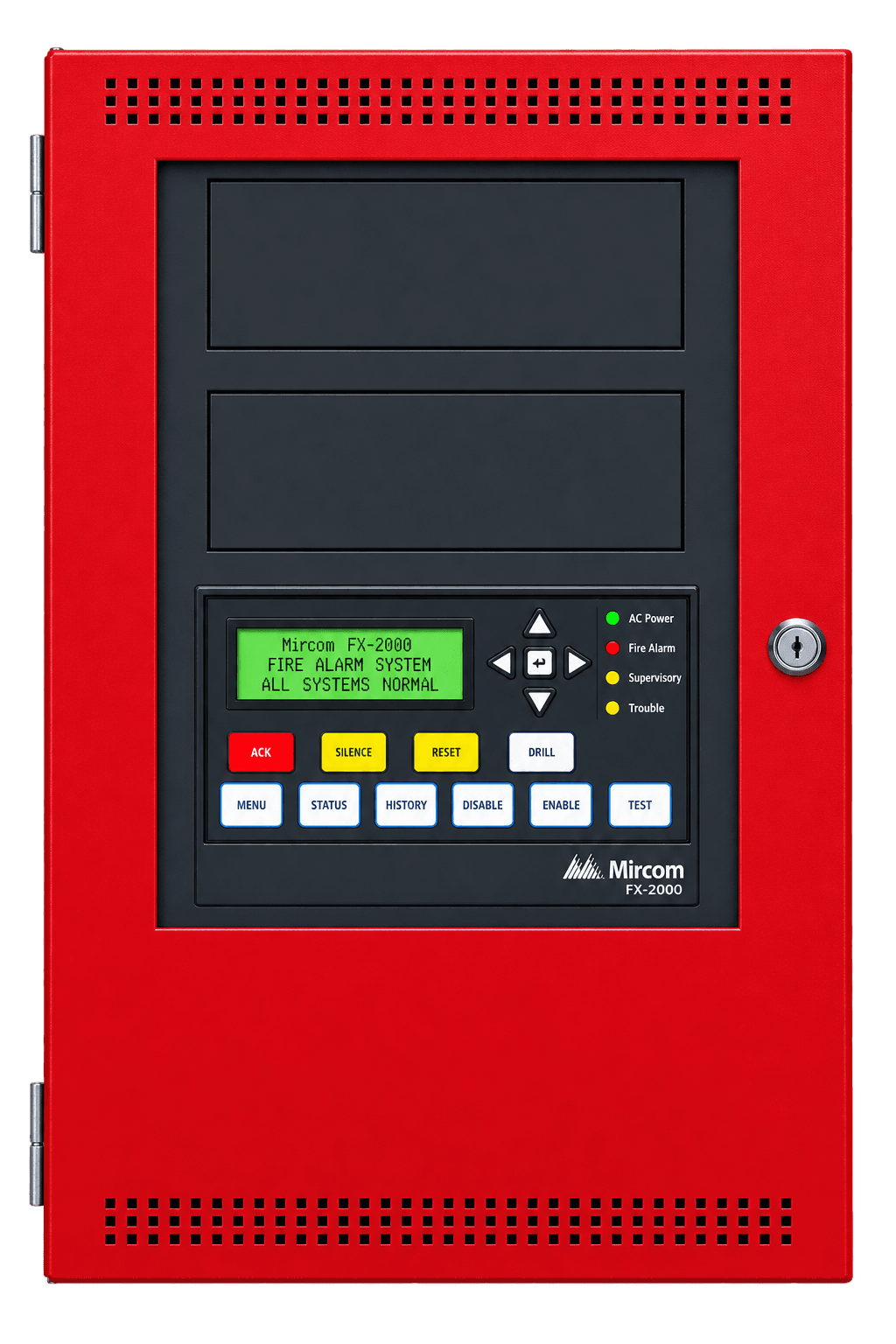

Mircom FX-2003-12NDS (Networkable Intelligent Fire Alarm Control) 1.png
Network Cards

Mircom FX-2003-12NDS (Networkable Intelligent Fire Alarm Control)

Mircom·SKU: FX-2003-12NDS

Indicative Price

Excluding local taxes and shipping.

Mircom FX-2003-12NDS Networkable Intelligent Fire Alarm Control Chassis w FleXNet Main Board, 1 Analog Loop Controller, 2 Conventional Loops, 20x4 LCD, 4 Class

infoNo online payment — request a quote and our team sends pricing. Prices are indicative and exclude taxes & shipping.

Description

The FleX-Net Compact Network Panel is a powerful intelligent networkable fire alarm solution. It has many levels of flexibility to meet virtually any application of detection, control, notification and emergency communications. Features such as fire detection & alarm, audio/voice evacuation, BACnet, Boolean logic, networking and graphical work stations allow this modular solution to accommodate the simplest systems up to the most complex solutions.

With the addition of the Advanced Protocol (AP), Fire/CO detection and 520 Hz support on both the addressable loop. Through the audio/voice evacuation, Mircom’s FleX-Net takes you even farther into the future with expanded capabilities. It supports peer-to-peer network communications, the FX-2003-12NDS allows for a maximum of 63 nodes while providing reliability, flexibility and expandability.

Each FleX-Net Compact Network Panel consists of one intelligent signalling line circuit (SLC) capable of supporting 159 analog Sensors and 159 addressable modules. In addition, the base panel includes Four Style Z/Y (Class A/B) Notification Appliance Circuits and an easy to read and use, large 4 x 20 back-lit alphanumeric LCD display.

The network configuration allows the FX-2003-12NDS control panel to be connected to a Mircom network to provide additional input circuits, visual zones, programmable notification appliance circuits, and relays. The network interface module allows the panels to communicate on a peer-to-peer network via a Proprietary Arcnet Network Communications protocol.

WHERE TO BUY

Agency Listings

Manufacturer technical information

Documents & Technical Downloads

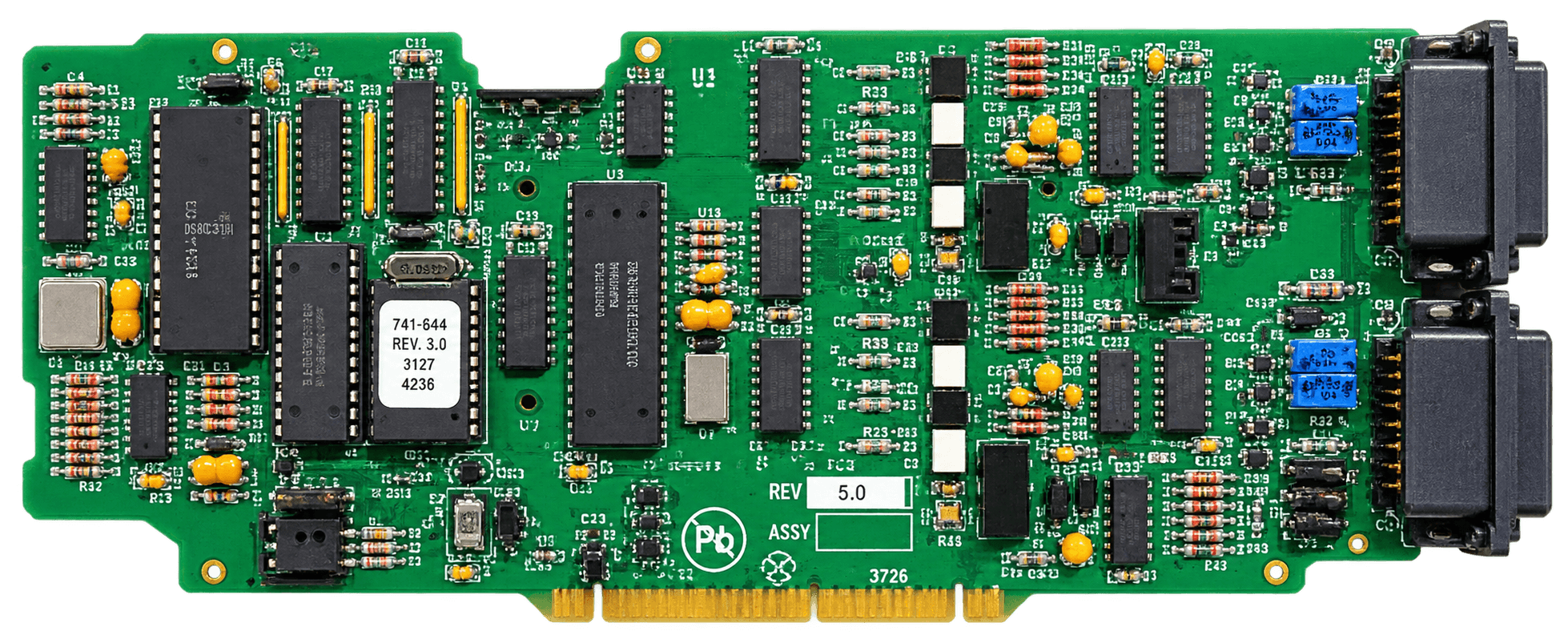

Simplex 4010-6310 (ESNET NTWK INTERFACE CARD FLAT)
