Sounder Bases

Hochiki ASB7 Analog Sounder Base (AUX Power Required), Bone

Hochiki·SKU: ASB7

Indicative Price

Excluding local taxes and shipping.

Analog Sounder Base (AUX Power Required), Bone

infoNo online payment — request a quote and our team sends pricing. Prices are indicative and exclude taxes & shipping.

Description

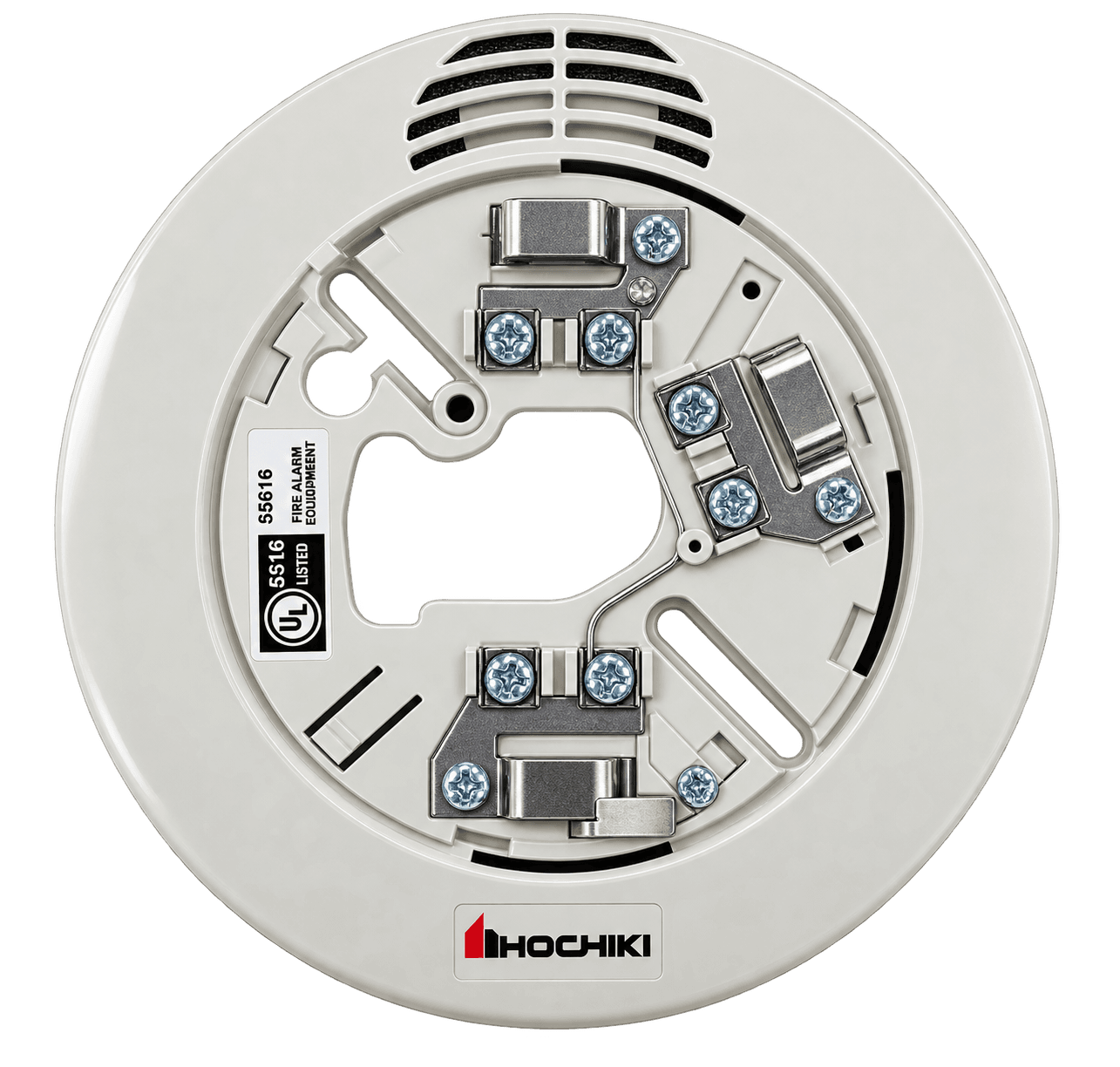

The ASB7 is an addressable sounder base for compatible Hochiki DCP analogue sensors. Its base address is derived from the fitted sensor, and groups can be configured for synchronised alarm patterns. An auxiliary supply powers the sounder in addition to the SLC connection. The detector and mounting box are separate system components.

Manufacturer product information

Technical Specifications

Auxiliary power16 to 31 VDC
Maximum bases per loop127
SLC operating voltage17 to 41 VDC
Sound pressure level85 dB at 10 ft
UL ambient installation temperature0 to 38 °C
