Detector Bases

Edwards SIGA-SB (Standard Base)

Edwards·SKU: SIGA-SB

Indicative Price

Excluding local taxes and shipping.

Standard Base for Signature Series Detectors

infoNo online payment — request a quote and our team sends pricing. Prices are indicative and exclude taxes & shipping.

Description

It connects the detector to the signaling line circuit (SLC), and provides wiring terminals for connection to a SIGA-LED

Supplier product details

Edwards SIGA-SB — standard mounting base for Signature Series intelligent detectors, with room-side SLC terminals and a remote LED connection.

Every Signature detector head needs a base, and the SIGA-SB is the plain one. It carries the signaling line circuit through the detector position and adds terminals for a SIGA-LED remote alarm indicator, the one function the relay and isolator bases do not offer.

  • Supports the SIGA-LED remote alarm LED; resistance per wire not above 10 ohms
  • Wire size 12 to 18 AWG, 16 and 18 AWG preferred
  • Fits North American 1-gang and 3-1/2 in. or 4 in. octagon boxes, and BESA boxes on 60.3 mm centres
  • High-impact engineering polymer housing, white; optional SIGA-TS trim skirt
  • 32 to 120 °F (0 to 49 °C), 0 to 93% RH non-condensing; UL 268, UL 521, CAN/ULC-S529

The alternatives change what the base adds, not the detector. SIGA-RB carries a supervised relay with a 1 A pilot-duty contact at 30 VDC and SIGA-IB a line fault isolator for Class A circuits; neither supports the SIGA-LED. SIGA-SB4 is this base sized for a 4 in. square box with a SIGA-TS4 skirt.

Supplier product page

Documents & Technical Downloads

Simplex 4098-9792 (Standard Sensor Base, White)

Simplex 4098-9792 (Standard Sensor Base, White)

Indicative Price

from

Simplex 4098-9793 (SSD Sensor Base)

Simplex 4098-9793 (SSD Sensor Base)

Indicative Price

from

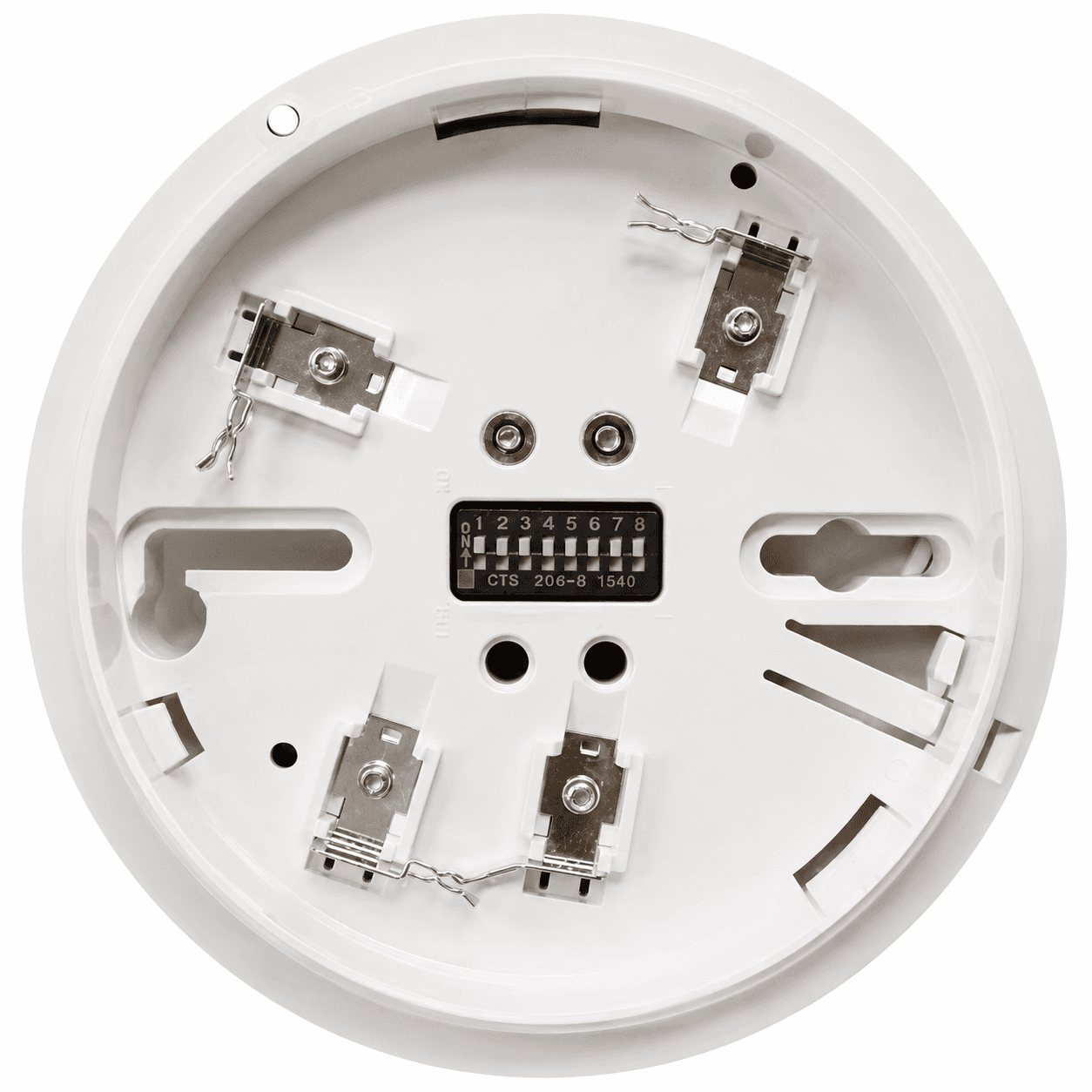

Simplex 4098-9789 (Sensor Base)
