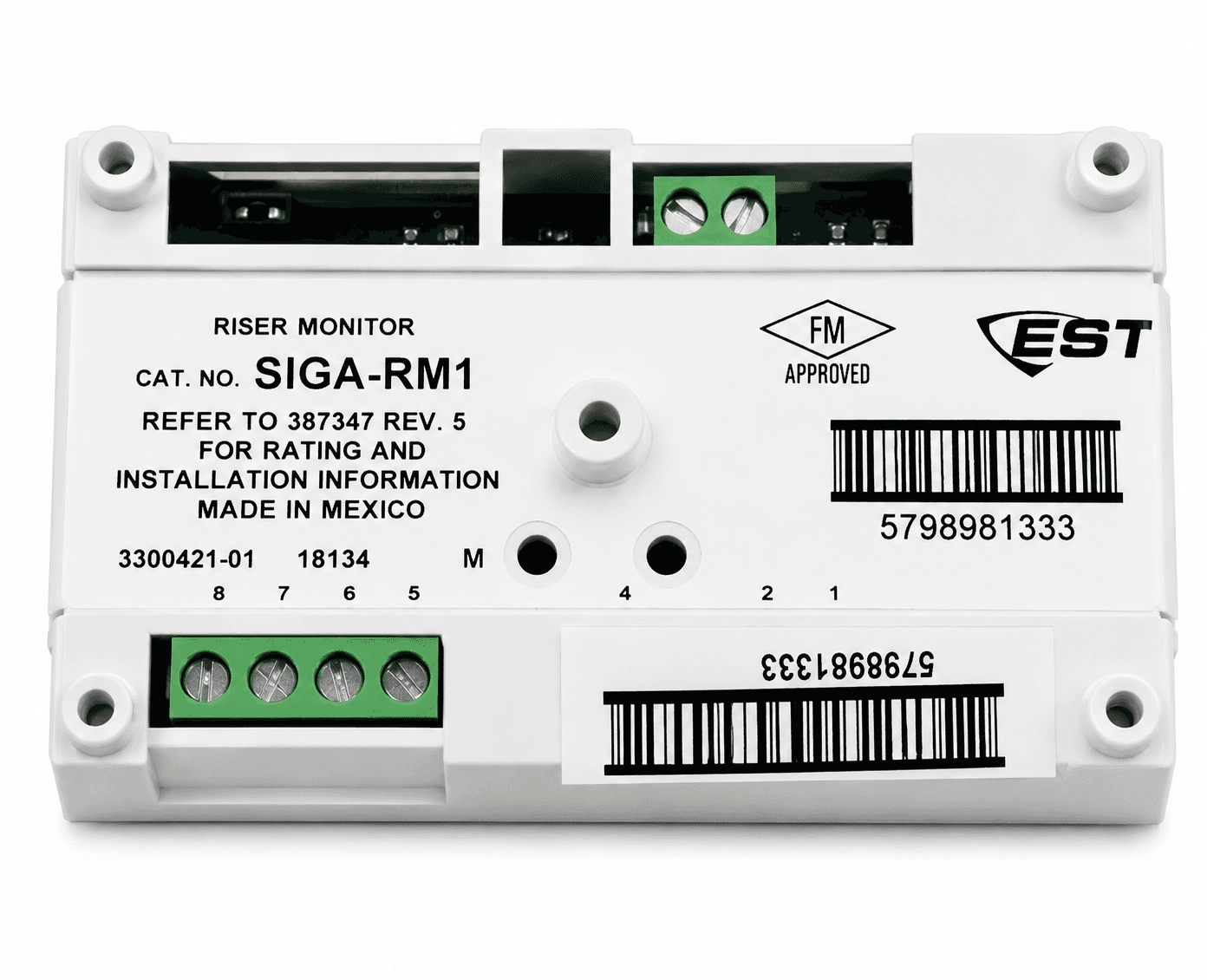

Edwards SIGA-RM1 (Monitor Module) 1.png
Monitor Modules

Edwards SIGA-RM1 (Monitor Module)

Edwards·SKU: SIGA-RM1

Indicative Price

Excluding local taxes and shipping.

Use For Monitoring Power, Audio, or Telephone Riser.

infoNo online payment — request a quote and our team sends pricing. Prices are indicative and exclude taxes & shipping.

Description

Edwards SIGA-RM1 — Signature Series intelligent addressable Riser Monitor Module, standard two-gang mount.

Audio and telephone risers carry no supervision of their own, so a fault on the riser would go unseen until the system was needed. This module watches riser voltage and reports a trouble to the panel when it falls below threshold. Its behaviour comes from a personality code downloaded by the loop controller: code 23 watches 70 Vac audio, 25 Vac audio or 12 and 24 Vdc risers, and code 24 watches telephone risers. A jumper selects the voltage group and is left out for telephone use.

  • Trouble threshold approximately 25 percent of riser input
  • Trouble delay selectable to 75 seconds, 15 seconds by default
  • 200 µA standby and activated; operating voltage 15.2 to 19.95 Vdc
  • Mounts to a 2-1/2" deep two-gang box; terminals take 12 to 18 AWG
  • Uses one module address; works with EST3, EST3X and iO Series panels
  • UL, ULC, MEA and CSFM listed

SIGA-MRM1 is the same module in plug-in UIO form. Do not substitute SIGA-MM1, which monitors a Class B dry-contact circuit rather than a riser.
