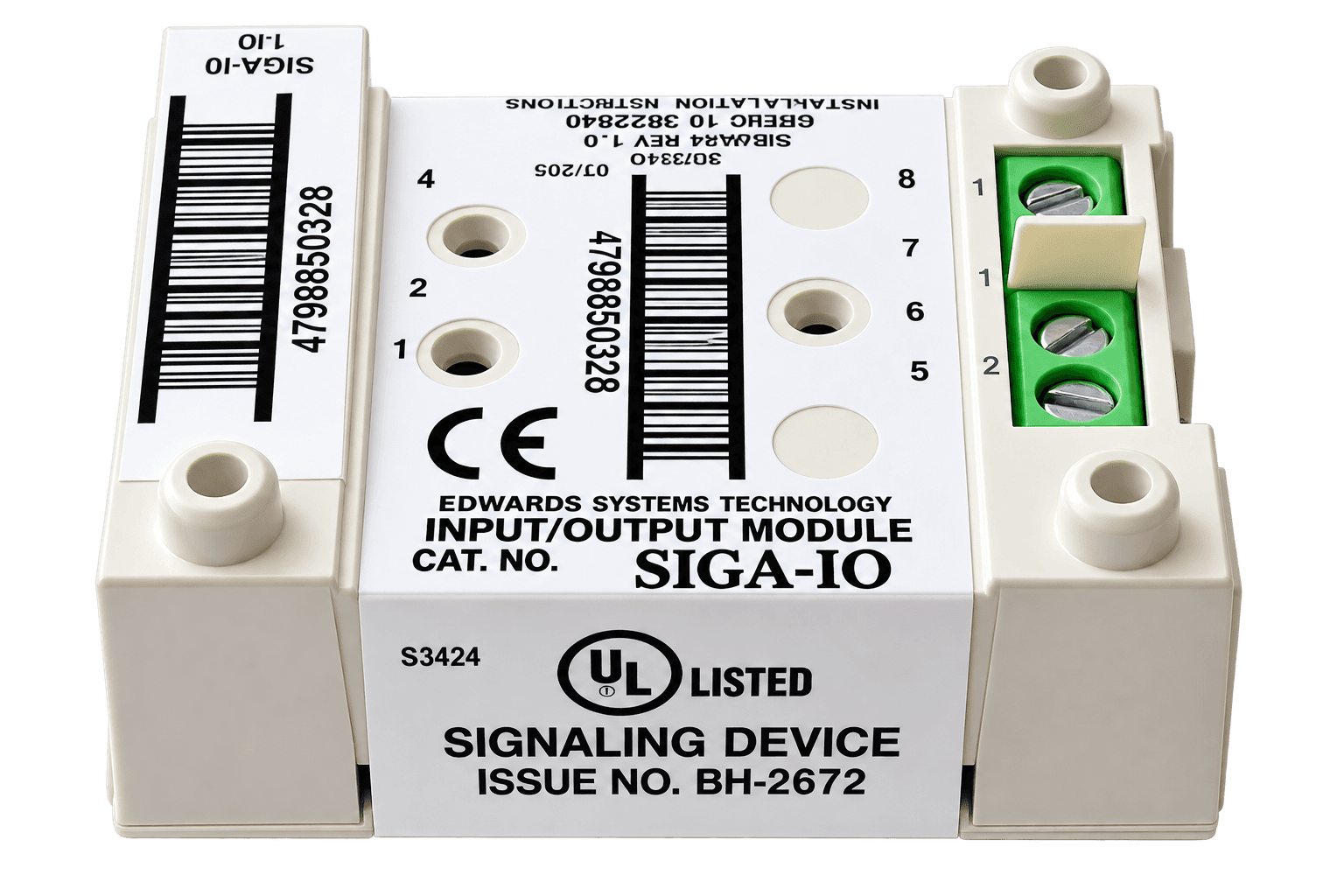

Edwards SIGA-IO (Input Output Module)

Edwards·SKU: SIGA-IO

Indicative Price

Excluding local taxes and shipping.

Input Output Module

infoNo online payment — request a quote and our team sends pricing. Prices are indicative and exclude taxes & shipping.

Description

Edwards SIGA-IO — Signature Series addressable module with one supervised input and one dry-contact relay output, one-gang mount.

One module, ten jobs: the installer picks a personality code that the Signature loop controller downloads at configuration, and the same hardware becomes a relay output with monitor input, a latching alarm input, a delayed waterflow input, or a non-latching active input for fans, dampers and doors.

  • One initiating device input and one Form A or Form B relay output; uses one module address
  • Ten personality codes (31–40); response time 5–120 seconds
  • Relay contacts, pilot duty: 2 A @ 24 VDC, 0.5 A @ 120 VAC
  • IDC end-of-line: UL/ULC listed 47 kΩ; 50 Ω max loop resistance
  • 250 µA standby, 430 µA activated; 15.2 to 19.95 VDC
  • Mounts to a 2-1/2" deep one-gang box or a SIGA-MP plate

The SIGA-IO does not plug into a UIO motherboard. If the drawings show a UIO2R or UIO6R position, order the SIGA-MIO instead — same function, plug-in form. Either way a Signature loop controller is required.
