Monitor Modules

Conventional Zone Monitor Module

Morley·SKU: MI-DCZRM

Indicative Price

Excluding local taxes and shipping.

Conventional Zone Monitor Module

infoNo online payment — request a quote and our team sends pricing. Prices are indicative and exclude taxes & shipping.

Description

Addressable Zone Monitor Module

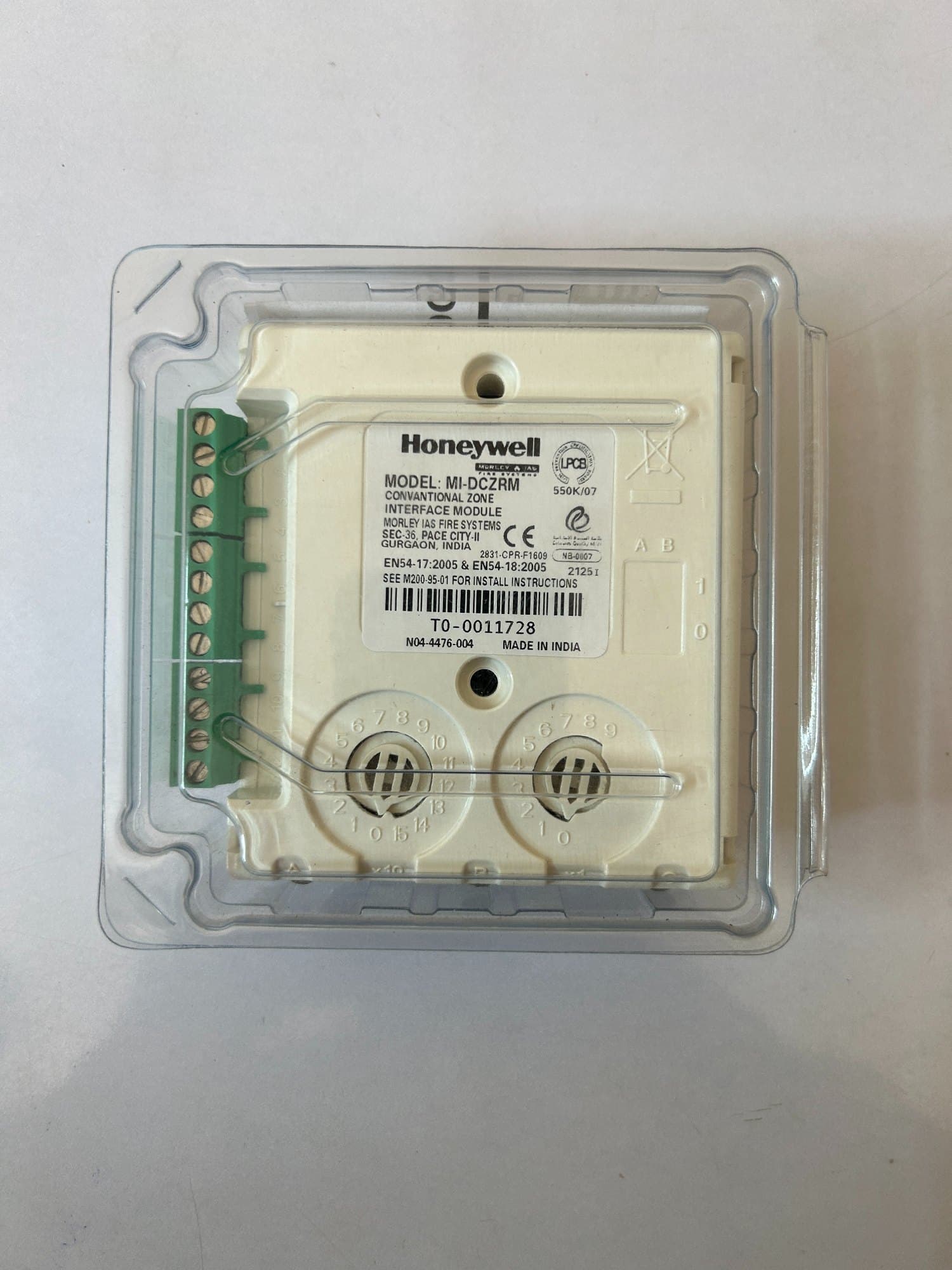

The MI-DCZRM addressable zone monitor module allows a zone of non-addressable devices to communicate with a Morley-EN protocol analogue addressable system. The module monitors a zone of two-wire non-addressable devices. Each MI-DCZRM uses one of 99 available module addresses on a loop. A fault signal will be transmitted to the panel in case of an open circuit or short circuit on the non-addressable zone wiring or when the external fault input is pulled low (can be used for power supply monitoring).

Manufacturer technical information

Technical Specifications

ApplicationMonitors a zone of two-wire non-addressable devices
Fault monitoringOpen circuit, short circuit and external fault input
Loop address consumptionOne of 99 module addresses
