Control Module

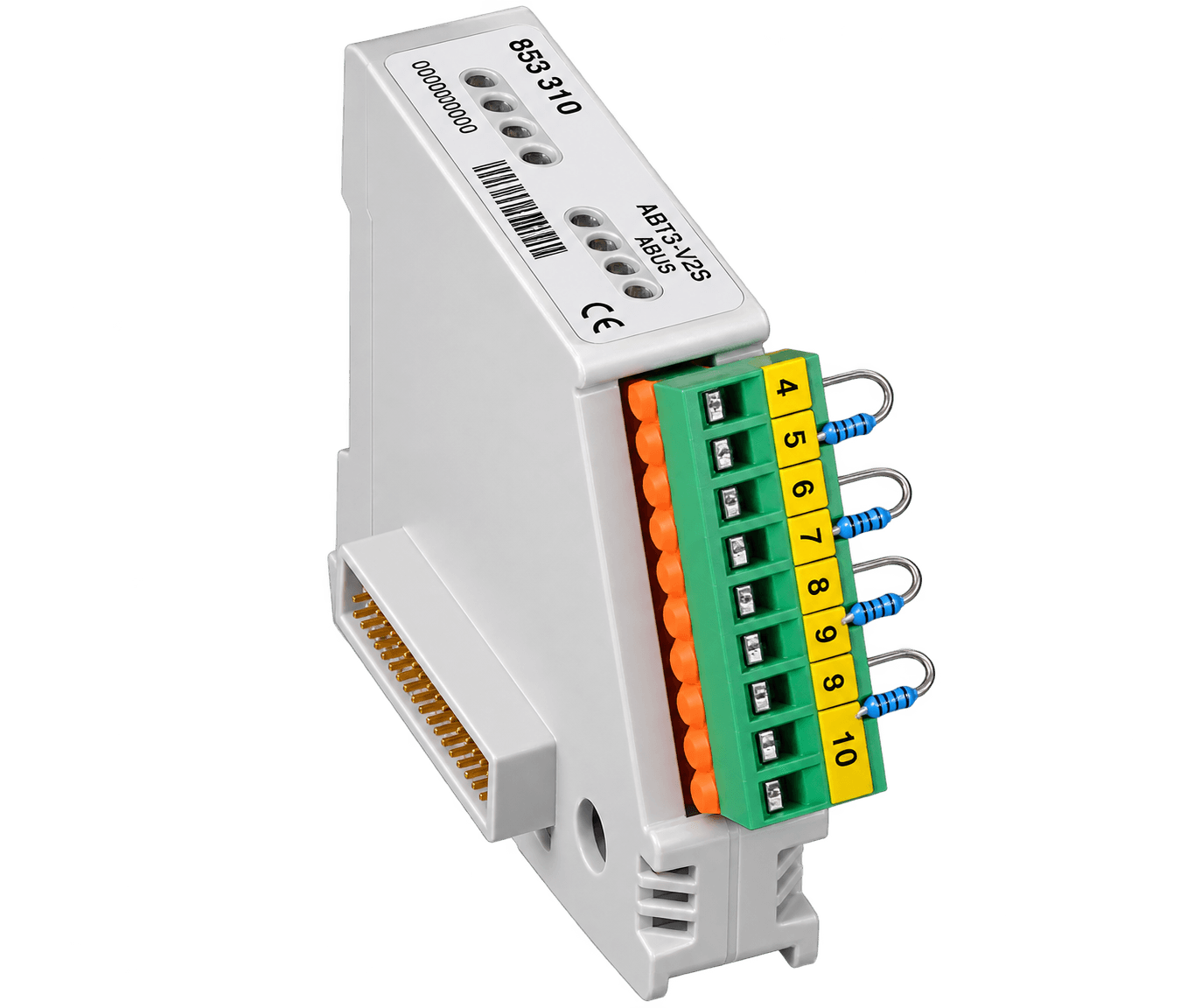

Autronica 116-BSB-310A Output Module Monitored

Autronica·SKU: 116-BSB-310A

Indicative Price

Excluding local taxes and shipping.

Output Module Monitored

infoNo online payment — request a quote and our team sends pricing. Prices are indicative and exclude taxes & shipping.

Description

The BSB-310A provides four monitored output circuits for alarm sounders, routing equipment and other controlled fire-protection functions. Each circuit is supervised for breaks and short circuits. The rail-mounted module is automatically addressed and requires an external 24 VDC supply. Output loading must observe the temperature derating and total-current limits in the datasheet.

Manufacturer product information

Technical Specifications

Dimensions95 × 89 × 32 mm
End-of-line resistor2000 Ω
External power18 to 32 VDC
Monitored outputs4
Operating temperature-25 to +70 °C
Output load limit1 A per output, 3 A total; temperature derating applies above 40 °C
