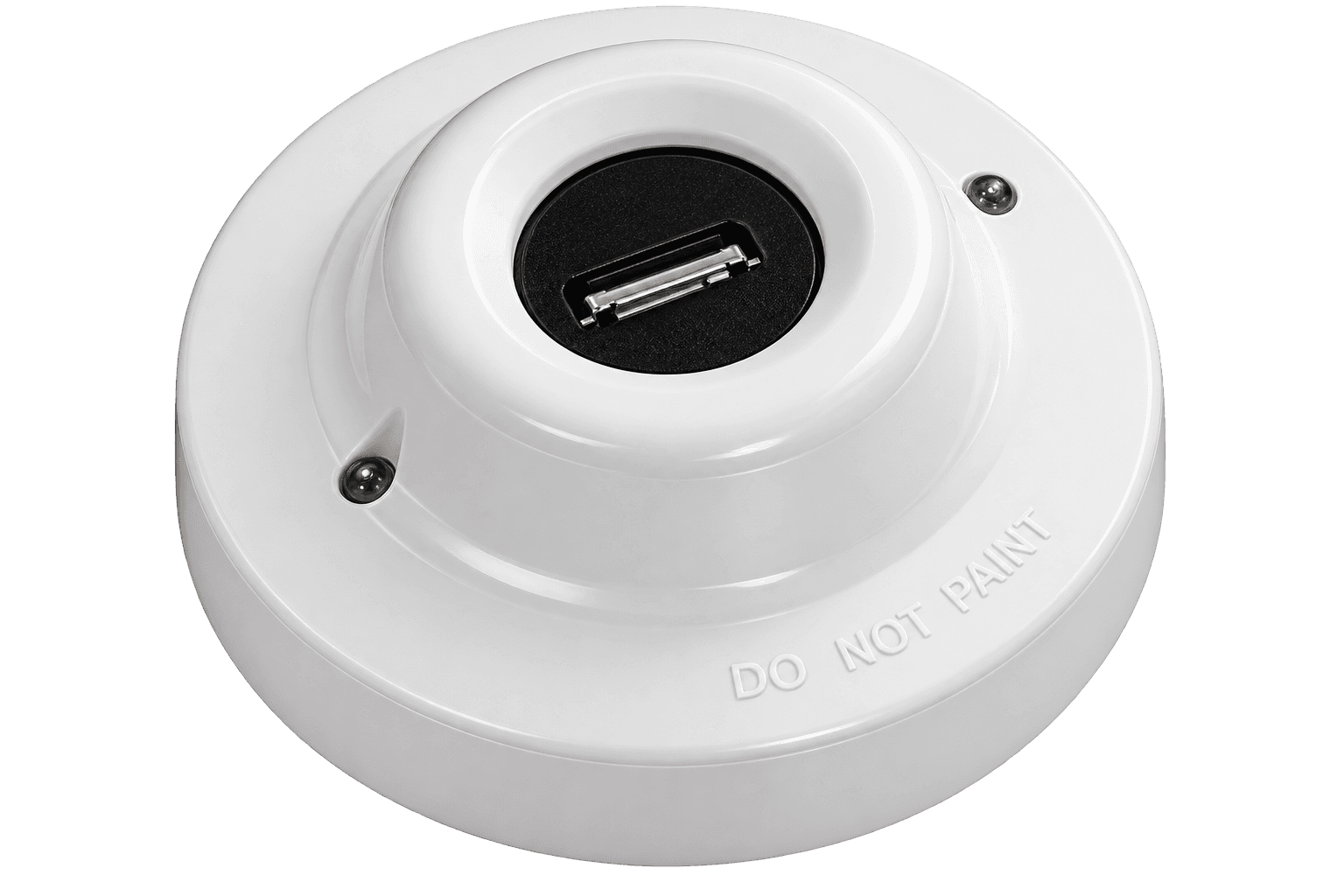

Apollo 55000-022APO Intelligent Base Mounted UV Flame Detector
Indicative Price
Excluding local taxes and shipping.
Intelligent Base Mounted UV Flame Detector
Description
The XP95 Flame Detector (UV) is designed to protect enclosed indoor areas where open fires may be expected. The detector has a fast acting response to flames up to 25m away and is equipped with a single UV sensor with a narrow spectral response in order to discriminate between flames and most spurious sources of radiation.
- Responds to stationary flames with no flicker
- Sensitive to UV radiation emitted by flames during combustion
- Compact flame detector which fits into Discovery or XP95 bases
- Loop-powered
Official Apollo product information
Technical Specifications
| Conformance - Approvals | CPR, FG, LPCB |
|---|---|
| Electrical - Maximum power-up time | 4 seconds |
| Electrical - Protocol voltage | 5 to 9V peak to peak |
| Electrical - Protocol voltage (max) | 9V |
| Electrical - Protocol voltage (min) | 5V |
| Electrical - Supply voltage (max) | 28V dc |
| Electrical - Supply voltage (min) | 17V dc |
| Electrical - Supply voltage (Vmin-Vmax) | 17 to 28V dc |
| Environmental - Humidity | 0% to 95% (no condensation or icing) |
| Environmental - Humidity (max) | 95%, RH |
| Environmental - Humidity (min) | 0%, RH |
| Environmental - Humidity Note | no condensation or icing |
| Environmental - IP rating Value | IP66 |
| Environmental - Operating temperature | -40 to 70°C / -40 to 158°F |
| Environmental - Operating temperature (max) | 70°C / 158°F |
| Environmental - Operating temperature (min) | -40°C / -40°F |
| Environmental - Storage temperature | -40 to 85°C |
| Environmental - Storage temperature (max) | 85°C |
| Environmental - Storage temperature (min) | -40°C |
| General - Applications | Car parks/loading bays, Hospitals, Warehouses |
| General - Warranty | 3 year |
| Mechanical - Colour | White |
| Mechanical - Materials housing | Polycarbonate |
| Mechanical - Materials terminals | Nickel plated stainless steel |
| Mechanical - Product diameter | 100mm / 3.94in |
| Mechanical - Product length | 40mm / 1.57in |
| Mechanical - Sensing window material | Quartz |
| Mechanical - Sensing window thickness | 2mm |
| Mechanical - Weight | 150g |
| Performance - Chamber type | Chevron |
| Performance - Field of view | 90° |
| Performance - Range of view (at 25m) | 0.1m² n-heptane |
| Performance - Sensitivity | High-Class 1Low-Class 3 |
| Performance - Spectral response – UV | 185 to 260μm |
| Performance - Spectral response (max) – UV | 260μm |
| Performance - Spectral response (min) – UV | 185μm |
