Heat Detectors

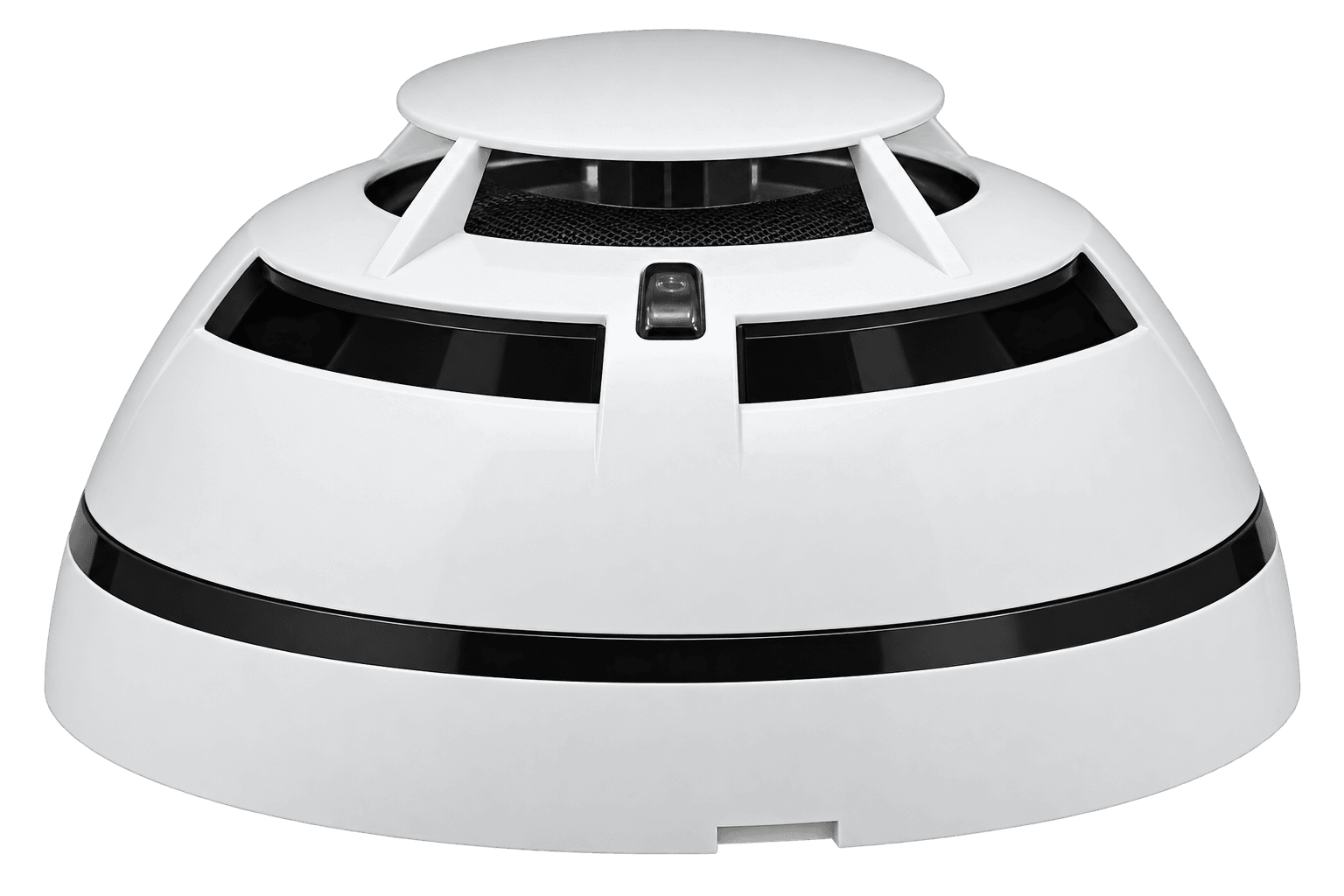

Advanced AXIS-HTX Axis EN Heat Detector W Isolator

Advanced Electronics·SKU: AXIS-HTX

Indicative Price

Excluding local taxes and shipping.

Heat Detector W Isolator

infoNo online payment — request a quote and our team sends pricing. Prices are indicative and exclude taxes & shipping.

Description

The Axis-HTX monitors temperature changes on compatible Axis EN fire alarm systems. It offers A1R rate-of-rise and Class BS thermal sensitivity modes, with a built-in bidirectional short-circuit isolator. Two bi-colour LEDs provide all-round status indication. Addressing and sensitivity can be configured using the manufacturer programming tool or supported panel functions.

Manufacturer product information

Technical Specifications

Average standby current45 µA at 24 VDC
Dimensions (H × diameter)60 × 100 mm
IP ratingIP40; IP42 with specified base gasket
Loop voltage18 to 40 VDC; operation down to 15 V without LED indication
Operating temperature-30 to +70 °C
Thermal sensitivity modesA1R rate of rise; Class BS

Documents & Technical Downloads
